Surround View Monitoring Unit
>>
Components And Components Location
>>
Components
Components And Components Location: Components

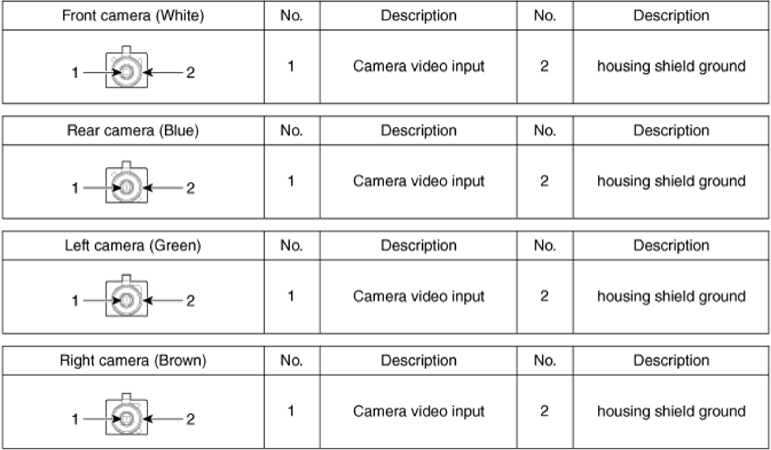

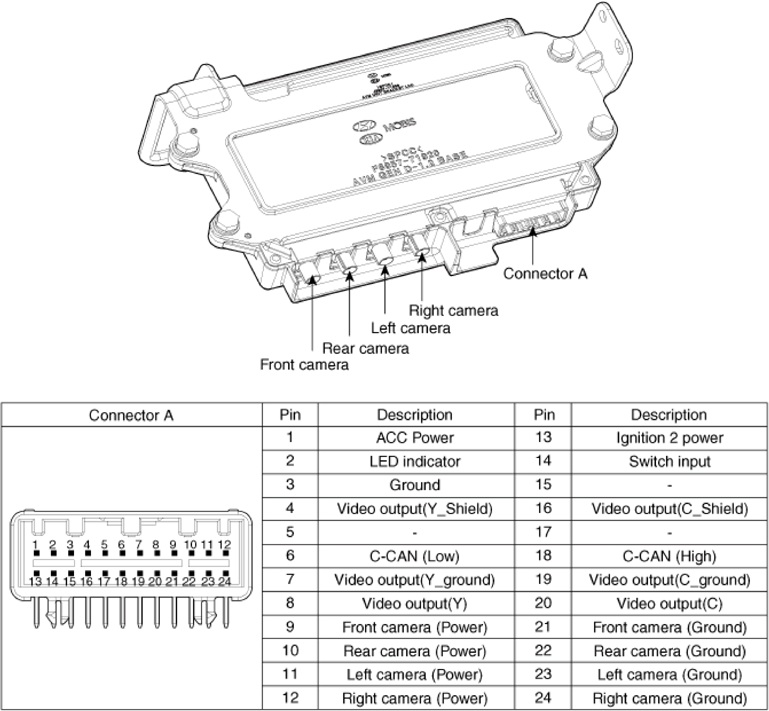

Fig 1: Surround View Monitoring Unit Connector End View And Terminal Description
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
