Repair Procedures: Removal

  1. Turn ignition switch OFF and disconnect the negative (-) battery cable.
  2. Remove the floor console.

    (Refer to Body - "FLOOR CONSOLE ")

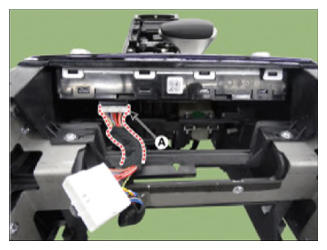

  3. Disconnect the heater control unit connector (A).
    G13551885Courtesy of HYUNDAI MOTOR AMERICA

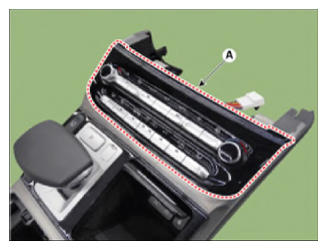

  4. Remove the heater control unit (A).
    G13551886Courtesy of HYUNDAI MOTOR AMERICA

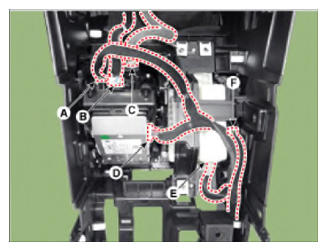

  5. Disconnect the connector (A), (B), (C), (D), (E), (F).
    G13551887Courtesy of HYUNDAI MOTOR AMERICA

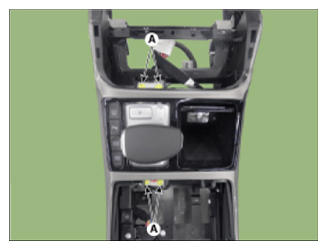

  6. Remove the mounting bolts (A) of the electronic shift lever.
    G13551888Courtesy of HYUNDAI MOTOR AMERICA

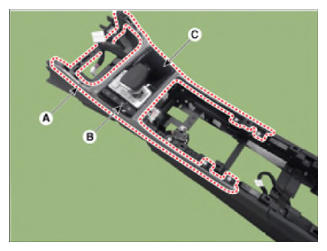

  7. Remove the electronic shift lever (B), WPC (C) with the garnish (A).
    G13551889Courtesy of HYUNDAI MOTOR AMERICA

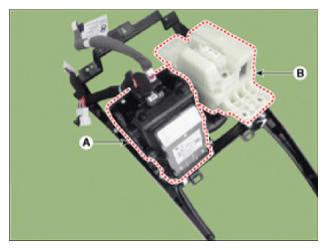

  8. Remove the electronic shift lever (A), WPC (B) from the garnish.
    G13551890Courtesy of HYUNDAI MOTOR AMERICA
