Repair Procedures: Replacement
WARNING: This page is about a different variant/trim than selected.
- Remove the front driveshaft.
(Refer to Driveshaft Assembly - "FRONT DRIVESHAFT ")
- Remove the TJ joint assembly.
(Refer to Driveshaft Assembly - "TJ JOINT ")

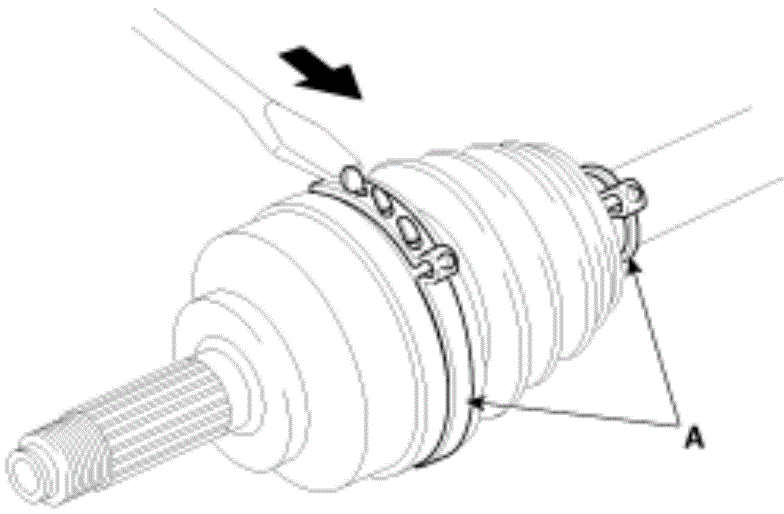

- Using a plier or flat-tipped (-) screwdriver, remove the BJ boot bands (A).
- Remove the BJ boot.
- Install the BJ boot with new ones.
- Using the SST (09495-3K000), secure the BJ boot bands.
Using the SST, secure the TJ boot bands.
[Ear type]
[Hook type]
NOTE:- Boot bands must be replaced with new ones whenever they are replaced.
- Install in the reverse order of removal.NOTE:
- Do not disassemble the BJ assembly.
- Special grease must be applied to the driveshaft joint. Do not substitute with another type of grease.
- The boot band should be replaced with a new one.
- Check the front alignment.
(Refer to Suspension System - "ALIGNMENT ")
