Connector Assembly Status Test

Remove the connector (A) and reinstall it.

G13551161

Courtesy of HYUNDAI MOTOR AMERICA

G13551162

Courtesy of HYUNDAI MOTOR AMERICA

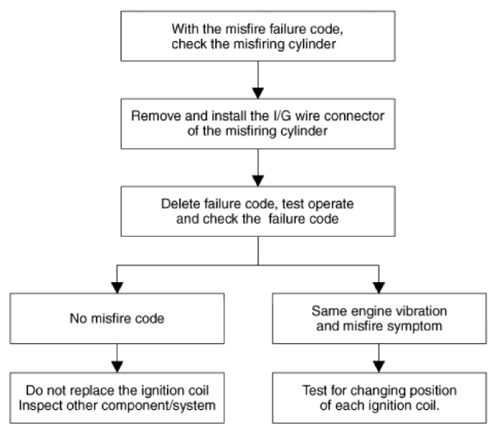

G13551163

Courtesy of HYUNDAI MOTOR AMERICA
