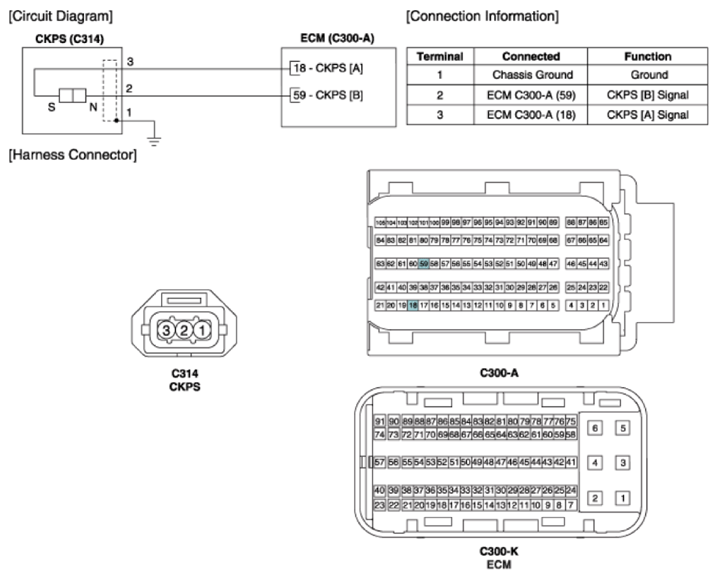

Home >> Genesis >> 2020 >> G90 5.0 Ultimate, RWD >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System - 5.0L >> Crankshaft Position Sensor (CKPS) >> Schematic Diagrams >> Circuit Diagram
