SAS Calibration

  1. Connect the GDS to the data link connector located underneath the dash panel.
  2. Make a selection and operate the process according to the instructions on the GDS screen.

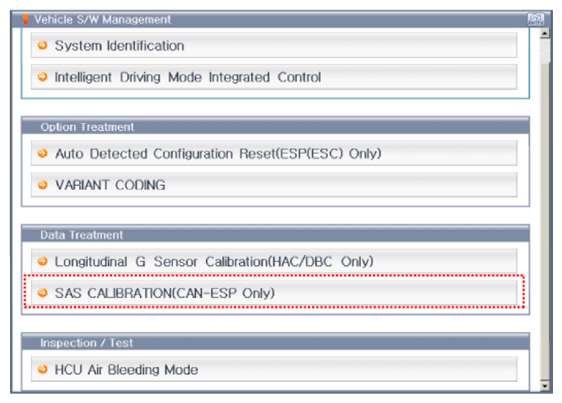

    G13549113Courtesy of HYUNDAI MOTOR AMERICA

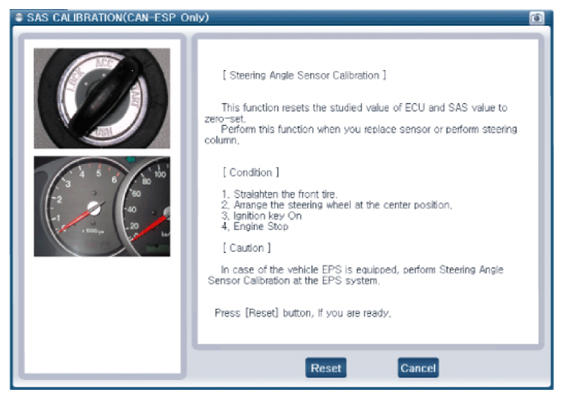

    G13549114Courtesy of HYUNDAI MOTOR AMERICA

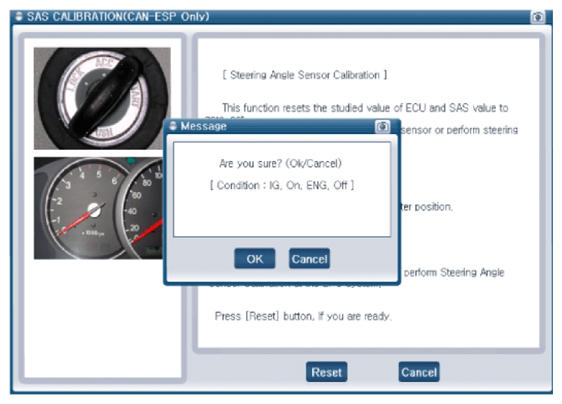

    G13549115Courtesy of HYUNDAI MOTOR AMERICA

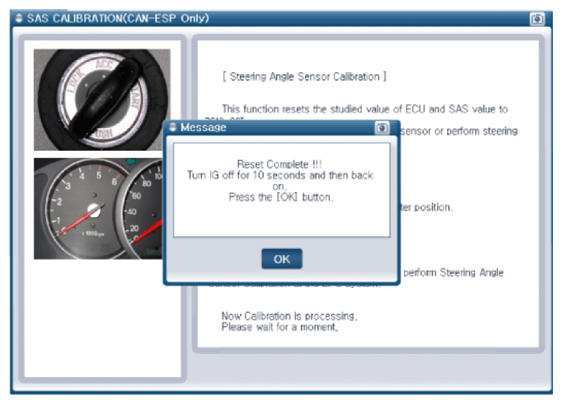

    G13549116Courtesy of HYUNDAI MOTOR AMERICA
