Variant Coding
After replacing the LKA Unit with a new one, must be performed the "Variant Coding" procedure.
- Connect the cable of GDS to the data link connector in driver side crash pad lower panel, turn the power on GDS.
- Select the "Car model" and the 'Lane Keeping Assist System'.

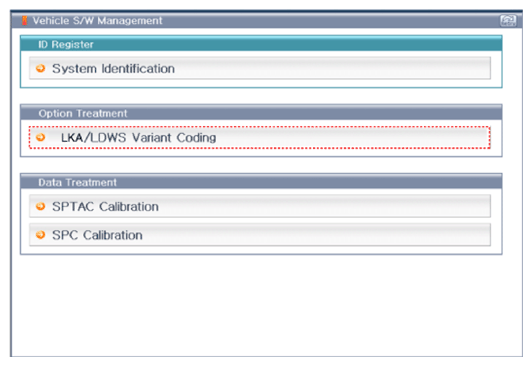

- Select Variant coding mode to perform.
