Service Data Analysis
- Self-diagnostic connector of the vehicle is connected to the GDS.
- Within 30 seconds after IG "OFF".

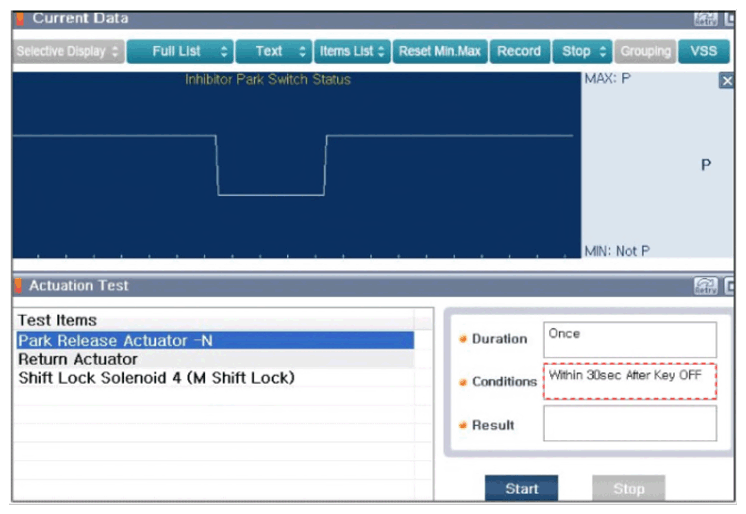

- Select the "Current Data" and "Actuation Test" on the GDS as dual mode.
- Select "park release Actuator-Nd" on the actuation list and press the start.
- Check whether the "inhibitor park switch state" is within specification ?
Specification : "P → Not P → P or Not P → P"
YES
- After repair, when the fault codes were not erased or May be due to temporary malfunctioning by poor contact of the power side.
Check if the connector is loose, poor contact, bending, corrosion, contamination, alteration, or damaged.
- Repair or replace if necessary, after that go to "VERIFICATION OF VEHICLE REPAIR " procedure.
NO
- Go to "VERIFICATION OF VEHICLE REPAIR " replacing the knob.
- After repair, when the fault codes were not erased or May be due to temporary malfunctioning by poor contact of the power side.
