Freeze Frame Data Analysis
- Self-diagnostic connector of the vehicle is connected to the GDS.
- Engine ON.
- Press "Diagnostic Trouble Codes (DTC) " button after selecting system and select the Freeze Frame data button in order to check DTC Information

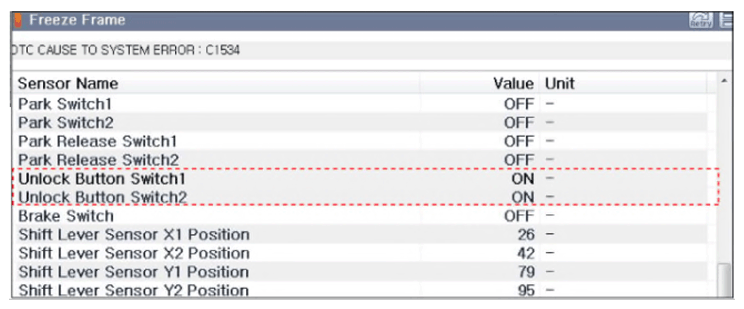

- Check "unlock button switch1, unlock button switch 2" of the Freeze Frame data.
Fail value : OFF (switch 1/2 matches)
- Is the state of "unlock button switch1, unlock button switch 2" within specification ?
YES
- After repair, when the fault codes were not erased or May be due to temporary malfunctioning by poor contact of the power side.
Check if the connector is loose, poor contact, bending, corrosion, contamination, alteration, or damaged.
- Repair or replace if necessary, after that go to "VERIFICATION OF VEHICLE REPAIR " procedure.
NO
- Go to next procedure "Current Data".
- After repair, when the fault codes were not erased or May be due to temporary malfunctioning by poor contact of the power side.
