Repair Procedures: Removal

  1. Turn ignition switch OFF and disconnect the negative (-) battery cable.

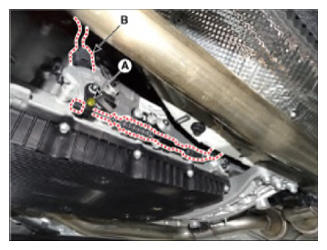

  2. Disconnect the parking switch connector (B) and release the fastener (A) to disconnect the cable from the parking release lever.
    G13551894Courtesy of HYUNDAI MOTOR AMERICA

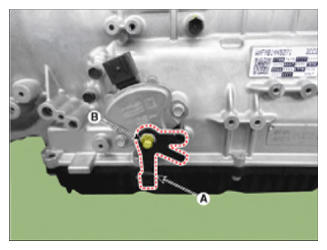

  3. Remove the parking release lever (A) after removing the nut (B).
    G13551895Courtesy of HYUNDAI MOTOR AMERICA
  4. Using the transmission jack, support the oil pan of the transmission.

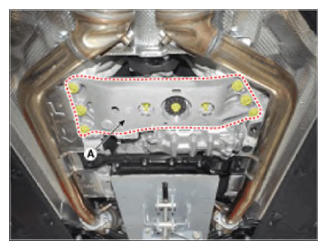

  5. Remove the cross member (A).
  6. Jack falls down to remove the parking switch.
    G13551896Courtesy of HYUNDAI MOTOR AMERICA

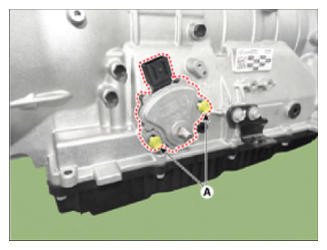

  7. Remove the parking switch after removing the bolts (A).
    G13551897Courtesy of HYUNDAI MOTOR AMERICA
