Rear Alignment: Camber
Camber angle
-1.4°±0.6°

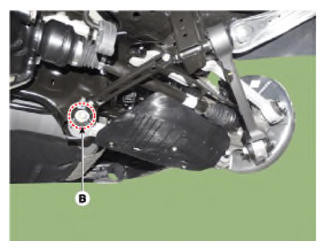

Adjust the camber by turning the cam bolt of the rear lower arm.
Left cam bolt: Clockwise → camber (+)
Right cam bolt: Clockwise →camber (-)
The variation of camber by a rotation of the cam bolt:
About 0.2°
| Item | Direction of rotation | Toe |
|---|---|---|
| Left side | Clockwise | Decrease (-) |
| Counter clockwise | Increase (+) | |
| Right side | Clockwise | Increase (-) |
| Counter clockwise | Decrease (+) |
