Removal And Installation
- Loosen the wheel nuts slightly. Raise the vehicle, and make sure it is securely supported.

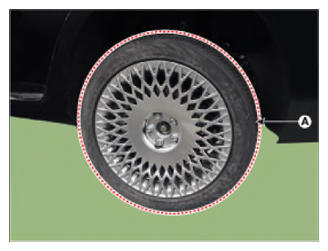

- Remove the rear wheel and tire (A) from the rear hub.
Tightening torque:
107.9 - 127.5 N.m (11.0 - 13.0 kgf.m, 79.6 - 94.0 lb-ft)
NOTE:- Be careful not to damage the hub bolts when removing the rear wheel and tire.

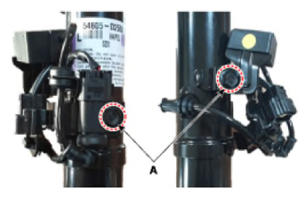

- Loosen the mounting bolts (A) and then remove the G-Sensor from the shock absorber.
Tightening torque:
6.9 - 10.8 N.m (0.7 - 1.1 kgf.m, 5.1 - 8.0 lb-ft)
- Remove the fixed clip (B) and then disconnect the connector (A).
- Remove the grommet and then remove the G-Sensor.
- Installation in the reverse order of removal.
