Removal And Installation

Raise the vehicle, and make sure it is securely supported.

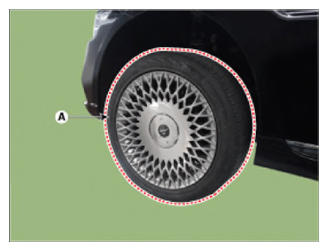

Remove the front wheel and tire (A) from the front hub.
Tightening torque:

107.9 - 127.5 N.m (11.0 - 13.0 kgf.m, 79.6 - 94.0 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
NOTE:
- Be careful not to damage the hub bolts when removing the front wheel and tire.

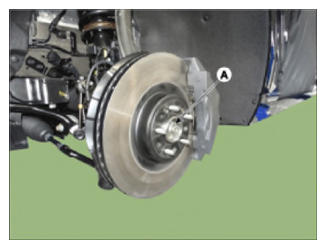

Loosen the driveshaft caulking nut (A).

Tightening torque:

294.2 - 313.8 N.m (30.0 - 32.0 kgf.m, 217.0 - 231.5 lb-ft)

G13548525

Courtesy of HYUNDAI MOTOR AMERICA

NOTE:

The front hub lock nut should be replaced with new ones.

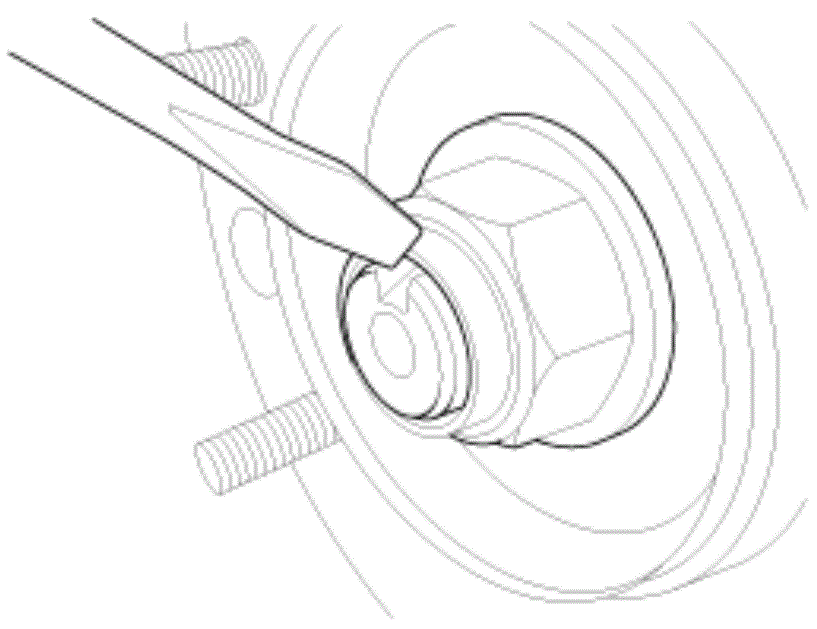

After installation lock nut, stake the lock nut using a chisel and hammer as shown in the illustration below.

Caulking depth: 1.5 mm (0.591 in.)

G13548526

Courtesy of HYUNDAI MOTOR AMERICA

Remove the brake caliper assembly.
(Refer to Brake System - "FRONT DISC BRAKE ")
Remove the wheel speed sensor (A) and wheel speed sensor cable bracket (B).
Tightening torque:

6.9 - 10.8 N.m (0.7 - 1.1 kgf.m, 5.1 - 8.0 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

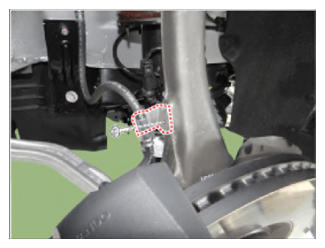

Remove the brake hose mounting bracket from the knuckle.
Tightening torque:

6.9 - 10.8 N.m (0.7 - 1.1 kgf.m, 5.1 - 8.0 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

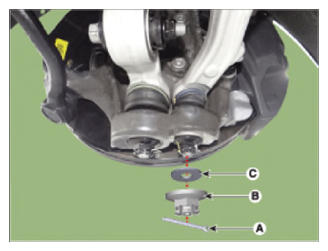

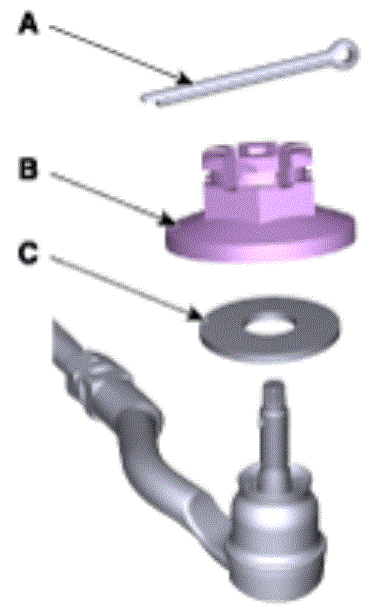

Remove the tie rod end ball joint from the knuckle.
1. Remove the split pin (A).
2. Remove the castle nut (B) and washer (C).

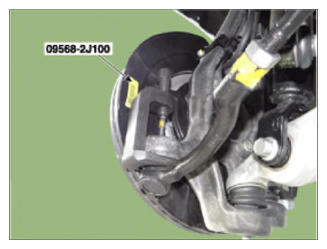

3. Disconnect the ball joint from knuckle using the special tool (09568-2J100).
Tightening torque:

88.3 - 107.9 N.m (9.0 - 11.0 kgf.m, 65.1 - 79.6 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

Courtesy of HYUNDAI MOTOR AMERICA
Using the special tool (09568-2J100), remove the lateral arm from the knuckle.

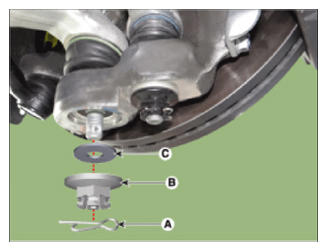

1. Remove the split pin (A).
2. Remove the castle nut (B) and washer (C).
3. Remove the lateral arm from knuckle using the special tool (09568-2J100).
Tightening torque:

88.3 - 107.9 N.m (9.0 - 11.0 kgf.m, 65.1 - 79.6 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

Courtesy of HYUNDAI MOTOR AMERICA

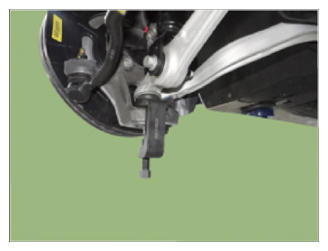

Using the special tool (09568-2J100), remove the compression arm from the knuckle.
Tightening torque:

88.3 - 107.9 N.m (9.0 - 11.0 kgf.m, 65.1 - 79.6 lb-ft)
1. Remove the split pin (A).
2. Remove the castle nut (B) and washer (C).
3. Remove the compression arm from knuckle using the special tool (09568-2J100).
Courtesy of HYUNDAI MOTOR AMERICA

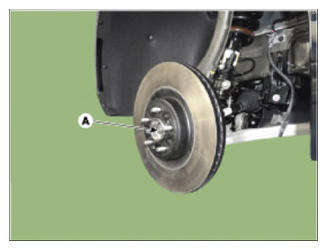

Using a plastic hammer, disconnect driveshaft (A) from the axle hub.

Courtesy of HYUNDAI MOTOR AMERICA

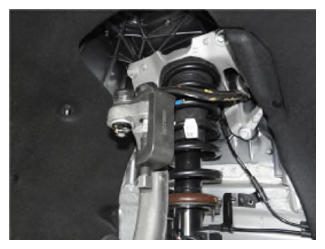

Using the special tool (09568-2J100), separate the upper arm from the knuckle.
1. Remove the split pin (A).
2. Remove the castle nut (B).
3. Remove the upper arm from knuckle using the special tool (09568-2J100).
Tightening torque:

78.5 - 88.3 N.m (8.0 - 9.0 kgf.m, 57.9 - 65.1 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

Courtesy of HYUNDAI MOTOR AMERICA

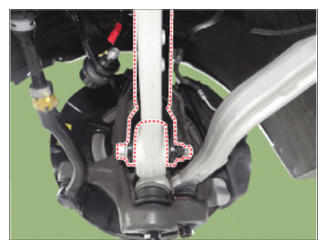

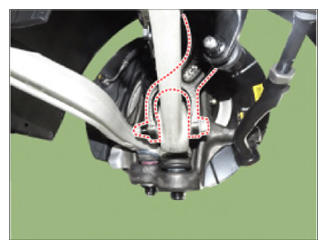

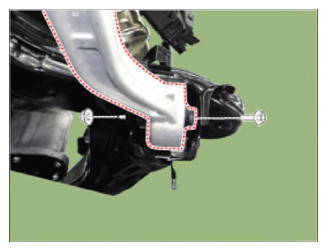

Loosen the bolt and nut, separate the front shock absorber assembly from the lower arm.
Tightening torque:

137.3 - 156.9 N.m (14.0 - 16.0 kgf.m, 101.3 - 115.7 lb-ft)

[AWD]

Courtesy of HYUNDAI MOTOR AMERICA

[2WD]

Courtesy of HYUNDAI MOTOR AMERICA

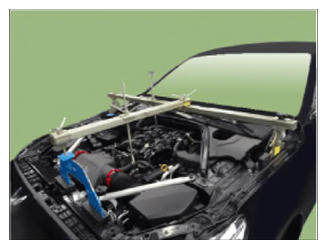

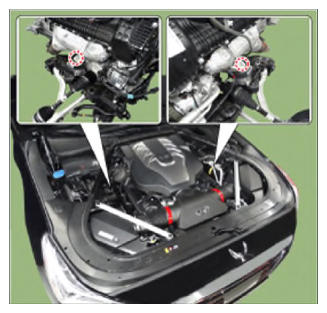

Using SST "Engine support fixture", support the Engine.
(Refer to Suspension System - "SPECIAL SERVICE TOOLS ")

Courtesy of HYUNDAI MOTOR AMERICA
Remove the under cover.
(Refer to Engine Mechanical System - "ENGINE ROOM UNDER COVER ")
Remove the universal joint from the steering gearbox by loosening the universal joint bolt (A).
Tightening torque:

32.4 - 37.3 N.m (3.3 - 3.8 kgf.m, 23.9 - 27.5 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
NOTE:
- Keep the steering wheel in a neutral position. Moving the steering wheel may damage the cable inside the clock spring.
- Tighten the steering column bolts in the same direction as they were removed.
- Do not reuse the universal joint bolt when installing.

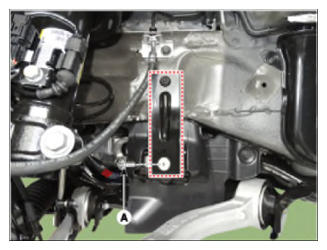

Remove the stay bracket by loosening the bolt (A).
Tightening torque:

49.0 - 63.7 N.m (5.0 - 6.5 kgf.m, 36.2 - 47.0 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

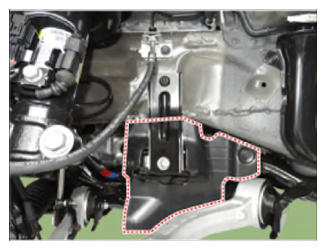

Remove the side cover.

Courtesy of HYUNDAI MOTOR AMERICA

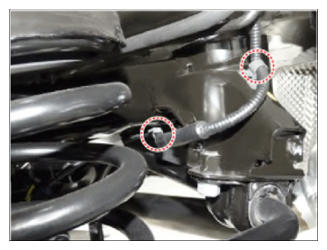

Remove the fixed clip from the subframe.

Courtesy of HYUNDAI MOTOR AMERICA

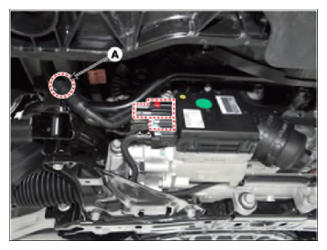

Disconnect the EPS connector and then remove the wiring (A).

Courtesy of HYUNDAI MOTOR AMERICA
Remove the wheel guard.
(Refer to Body - "FRONT WHEEL GUARD ")
Remove the hood assembly.
(Refer to Body - "HOOD ASSEMBLY ")
Raise the vehicle, and make sure it is securely supported.

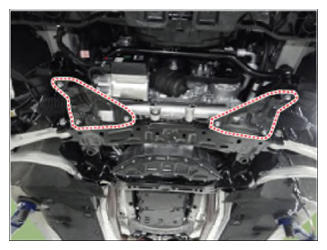

Remove the subframe stay bracket by loosening the mounting bolts.
Tightening Torques:

39.2 - 49.0 N.m (4.0 - 5.0 kgf.m, 28.9 - 36.2 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

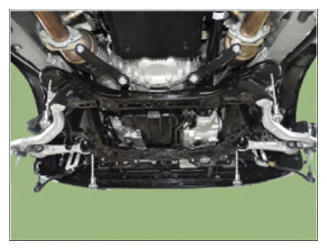

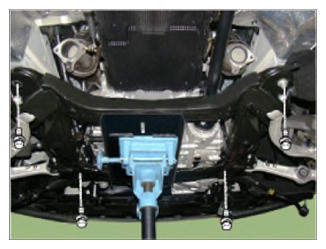

Loosen the subframe mounting bolts and then remove the subframe.
Tightening torque:

176.5 - 196.1 N.m (18.0 - 20.0 kgf.m, 130.2 - 144.7 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
NOTE:
- Must use a engine jack for safety.
Courtesy of HYUNDAI MOTOR AMERICA

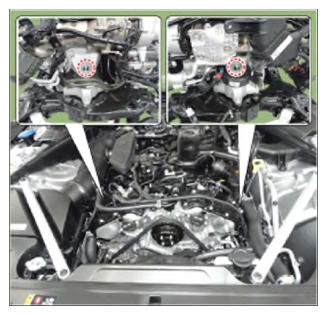

Loosen the hanger (A) and then take down the engine slowly.

Courtesy of HYUNDAI MOTOR AMERICA
NOTE:
- Be careful not to damage the order parts when removing the subframe.
Loosen the mounting bolts and then remove the sub frame. [Tau 5.0]
Tightening torque:

176.5 - 196.1 N.m (18.0 - 20.0 kgf.m, 130.2 - 144.7 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
Loosen the mounting nuts and then remove the sub frame. [Tau 5.0]
Tightening torque:

176.5 - 196.1 N.m (18.0 - 20.0 kgf.m, 130.2 - 144.7 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

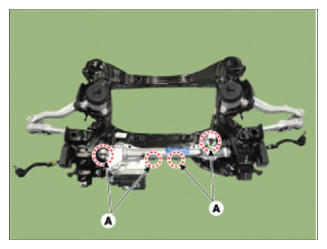

Loosen the mounting bolts (A) and then remove the steering gear box from the sub frame.
Tightening torque:

107.9 - 127.5 N.m (11.0 - 13.0 kgf.m, 79.6 - 94.0 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

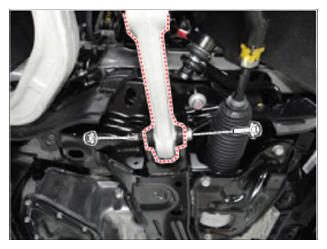

Loosen the mounting bolt & nut and then remove the lateral arm from the sub frame.
Tightening torque:

137.3 - 156.9 N.m (14.0 - 16.0 kgf.m, 101.3 - 115.7 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
Loosen the mounting bolt & nut and then remove the compression arm from the sub frame.
Tightening torque:

137.3 - 156.9 N.m (14.0 - 16.0 kgf.m, 101.3 - 115.7 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

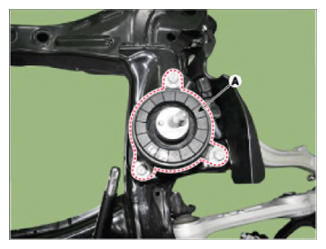

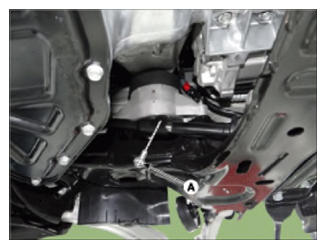

Remove the engine mounting bracket (A).
Tightening torque:

49.0 - 63.7N.m (5.0 - 6.5 kgf.m, 36.2 - 47.0 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
Install in the reverse order of removal.
Check the alignment.
(Refer to Tires/Wheels - "ALIGNMENT ")
