Without ECS

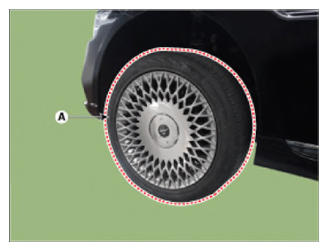

Loosen the nut (A) and then remove the stabilizer link from the front strut assembly.

Tightening torque:

98.1 - 117.7 N.m (10.0 - 12.0 kgf.m, 72.3 - 86.8 lb-ft)

[2WD]

Courtesy of HYUNDAI MOTOR AMERICA

[AWD]

Courtesy of HYUNDAI MOTOR AMERICA

NOTE:

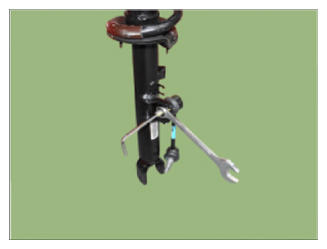

Using a hex wrench, fix the end of stabilizer link when loosening the nut.

Courtesy of HYUNDAI MOTOR AMERICA

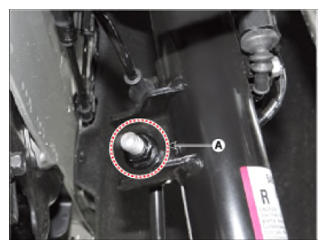

Using SST (09568 - 2D100), remove the nut (A) from the absorber. [With 3.3 T-GDI]

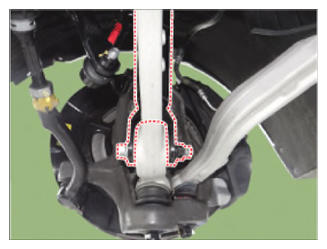

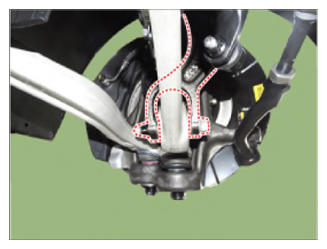

Loosen the bolt and nut, separate the front shock absorber assembly from the lower arm.
Tightening torque:

137.3 - 156.9 N.m (14.0 - 16.0 kgf.m, 101.3 - 115.7 lb-ft)

[AWD]

Courtesy of HYUNDAI MOTOR AMERICA

[2WD]

Courtesy of HYUNDAI MOTOR AMERICA
Loosen the mounting bolts and then remove the wheel speed sensor cable bracket from the knuckle.
Tightening torque:
1. 8.8 - 13.7 N.m (0.9 - 1.4 kgf.m, 6.5 - 10.1 lb-ft)
2. 6.9 - 10.8 N.m (0.7 - 1.1 kgf.m, 5.1 - 8.0 lb-ft)
[2WD]

Courtesy of HYUNDAI MOTOR AMERICA

[AWD]

Courtesy of HYUNDAI MOTOR AMERICA
Using the special tool (09568-2J100), separate the upper arm from the knuckle.
1. Remove the split pin (A).
2. Remove the castle nut (B).
3. Remove the upper arm from knuckle using the special tool (09568-2J100).
Tightening torque:

78.5 - 88.3 N.m (8.0 - 9.0 kgf.m, 57.9 - 65.1 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

Courtesy of HYUNDAI MOTOR AMERICA

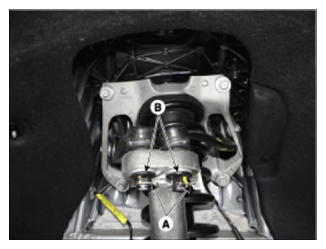

Remove the front strut assembly by loosening the module bracket mounting bolts.
Tightening torque:

53.9 - 63.7 N.m (5.5 - 6.5 kgf.m, 39.8 - 47.0 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

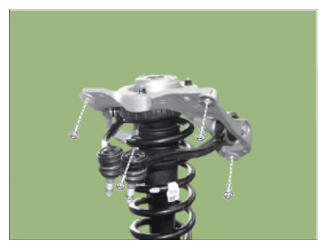

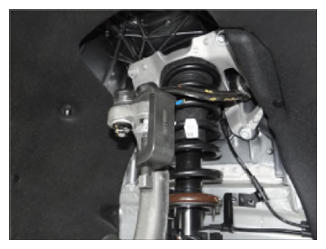

Loosen the nuts (A) and remove the bracket from the strut assembly.
Tightening torque:

19.6 - 29.4 N.m (2.0 - 3.0 kgf.m, 14.5 - 21.7 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
Install in the reverse order of removal.
