With ECS

  1. Raise the vehicle, and make sure it is securely supported.
  2. Remove the front wheel and tire (A) from the front hub.

    Tightening torque:

    107.9 - 127.5 N.m (11.0 - 13.0 kgf.m, 79.6 - 94.0 lb-ft)

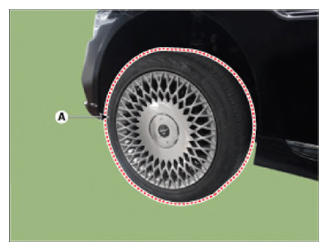

    G13548479Courtesy of HYUNDAI MOTOR AMERICA
    NOTE:
    • Be careful not to damage the hub bolts when removing the front wheel and tire.
  3. Loosen the nut (A) and then remove the stabilizer link from the front strut assembly.

    Tightening torque:

    98.1 - 117.7 N.m (10.0 - 12.0 kgf.m, 72.3 - 86.8 lb-ft)

    [2WD]

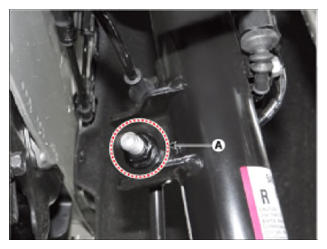

    G13548480Courtesy of HYUNDAI MOTOR AMERICA

    [AWD]

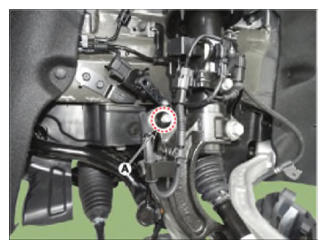

    G13548481Courtesy of HYUNDAI MOTOR AMERICA
    NOTE:
    • Using a hex wrench, fix the end of stabilizer link when loosening the nut.

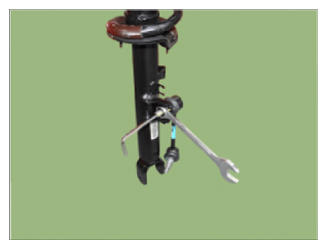

      G13548482Courtesy of HYUNDAI MOTOR AMERICA
    • Using SST (09568 - 2D100), remove the nut (A) from the shock absorber. [With 3.3 T-GDI]
  4. Loosen the bolt and nut, separate the front shock absorber assembly from the lower arm.

    Tightening torque:

    137.3 - 156.9 N.m (14.0 - 16.0 kgf.m, 101.3 - 115.7 lb-ft)

    [AWD]

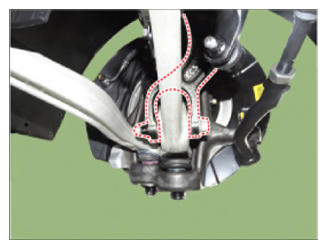

    G13548483Courtesy of HYUNDAI MOTOR AMERICA

    [2WD]

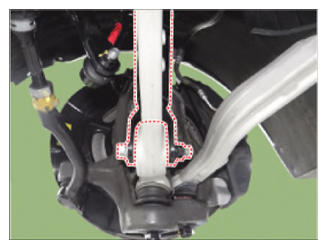

    G13548484Courtesy of HYUNDAI MOTOR AMERICA
  5. Loosen the mounting bolts and then remove the cable bracket from the knuckle.

    Tightening torque:

    1. 8.8 - 13.7 N.m (0.9 - 1.4 kgf.m, 6.5 - 10.1 lb-ft)
    2. 6.9 - 10.8 N.m (0.7 - 1.1 kgf.m, 5.1 - 8.0 lb-ft)

    [2WD]

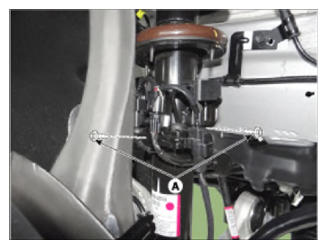

    G13548485Courtesy of HYUNDAI MOTOR AMERICA

    [AWD]

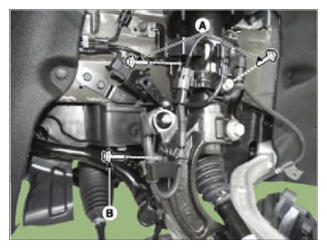

    G13548486Courtesy of HYUNDAI MOTOR AMERICA
  6. Using the special tool (09568-2J100), separate the upper arm from the knuckle.
    1. Remove the split pin (A).
    2. Remove the castle nut (B).
    3. Remove the upper arm from knuckle using the special tool (09568-2J100).

    Tightening torque:

    78.5 - 88.3 N.m (8.0 - 9.0 kgf.m, 57.9 - 65.1 lb-ft)

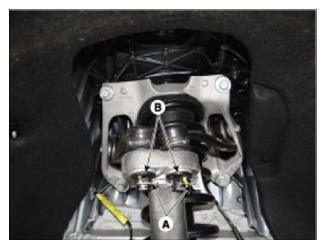

    G13548487Courtesy of HYUNDAI MOTOR AMERICA

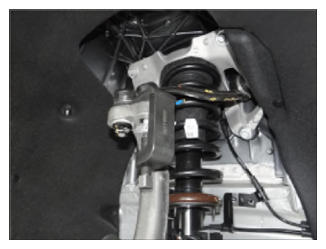

    G13548488Courtesy of HYUNDAI MOTOR AMERICA
  7. Remove the front strut assembly by loosening the module bracket mounting bolts.

    Tightening torque:

    53.9 - 63.7 N.m (5.5 - 6.5 kgf.m, 39.8 - 47.0 lb-ft)

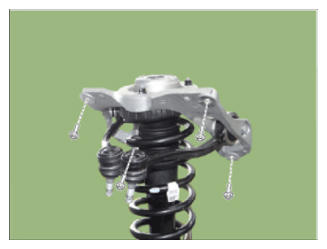

    G13548489Courtesy of HYUNDAI MOTOR AMERICA
  8. Remove the ECS wiring bracket (A) from the module bracket assembly.

    Tightening torque:

    6.9 - 10.8 N.m (0.7 - 1.1 kgf.m, 5.1 - 8.0 lb-ft)

    G13548490Courtesy of HYUNDAI MOTOR AMERICA
  9. Disconnect the ECS connector.
    G13548491Courtesy of HYUNDAI MOTOR AMERICA
    NOTE:
    • Removal of ECS connector
    1. Separate the upper cap (A) and lower cap (C).
    2. Separate the connector (B) and shock absorber rod (D).
    3. Separate the lower cap (C) and insulator (E).

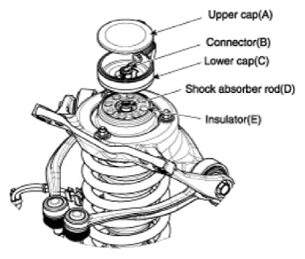

    G13548492Courtesy of HYUNDAI MOTOR AMERICA
    • Precautions when installing the connector.
    • Make sure the red marking after installing the connector as shown illustration below.
    G13548493Courtesy of HYUNDAI MOTOR AMERICA
  10. Loosen the nuts (A) and remove the bracket from the strut assembly.

    Tightening torque:

    19.6 - 29.4 N.m (2.0 - 3.0 kgf.m, 14.5 - 21.7 lb-ft)

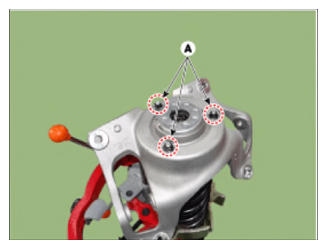

    G13548494Courtesy of HYUNDAI MOTOR AMERICA
  11. Install in the reverse order of removal.
