Components And Components Location: Components: [AWD]

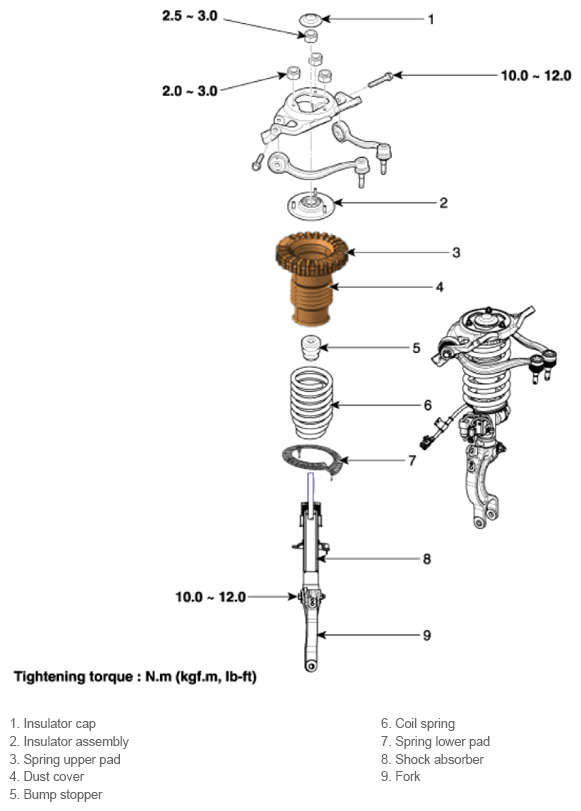

Fig 1: Front Strut Assembly Components Location With Torque Specification (AWD)
G13548466Courtesy of HYUNDAI MOTOR AMERICA
