Compression Arm

Raise the vehicle, and make sure it is securely supported.

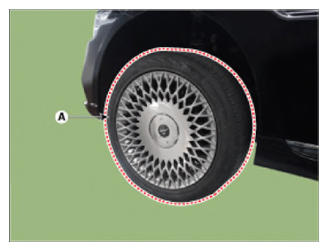

Remove the front wheel and tire (A) from the front hub.
Tightening torque:

107.9 - 127.5 N.m (11.0 - 13.0 kgf.m, 79.6 - 94.0 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
NOTE:
- Be careful not to damage the hub bolts when removing the front wheel and tire.
Using the special tool (09568-2J100), remove the compression arm from the knuckle.
Tightening torque:

88.3 - 107.9 N.m (9.0 - 11.0 kgf.m, 65.1 - 79.6 lb-ft)

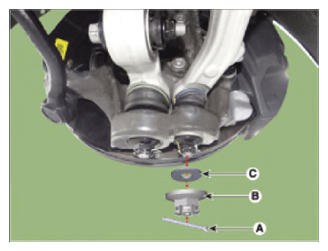

1. Remove the split pin (A).
2. Remove the castle nut (B) and washer (C).
3. Remove the compression arm from knuckle using the special tool (09568-2J100).
Courtesy of HYUNDAI MOTOR AMERICA

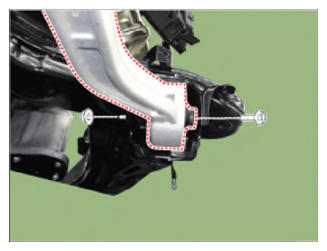

Loosen the mounting bolt & nut and then remove the compression arm from the sub frame.
Tightening torque:

137.3 - 156.9 N.m (14.0 - 16.0 kgf.m, 101.3 - 115.7 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
Install in the reverse order of removal.
Check the alignment.
(Refer to Tires/Wheels - "ALIGNMENT ")
