Repair Procedures: Removal
- Disconnect the battery negative cable and wait for at least three minutes before beginning work.

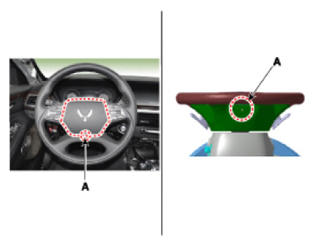

- Put a flat tool (04 mm) into a guide hole located in the bottom of steering wheel and press a spring.WARNING:
- When put a tool into a hole, make sure not to damage an airbag cushion by a tool.

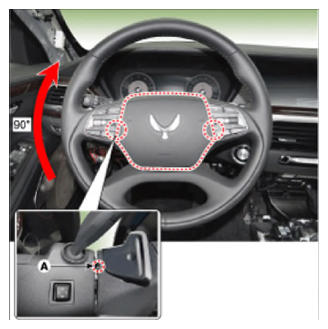

- Turn a steering wheel anti-clockwise, so make a guide hole (A) shown on the right side.

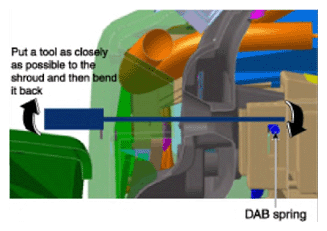

Put a tool into a hole (B) and bend back a fixed DAB spring.
Make sure to pull DAB cover when bend back the spring.
NOTE:- Pull the DAB cover when disengaging the DAB spring because the DAB does not pop up automatically.

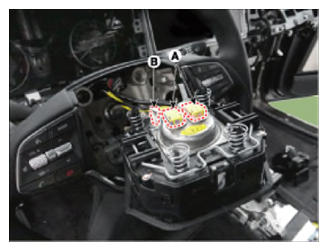

- Release the connector locking pin, then disconnect the driver airbag module connector (A) and horn connector (B).
- Remove the steering wheel.
(Refer to Steering System - "STEERING WHEEL ")
- Remove the shroud lower panel and shroud upper panel.
(Refer to Steering System - "STEERING COLUMN AND SHAFT ")

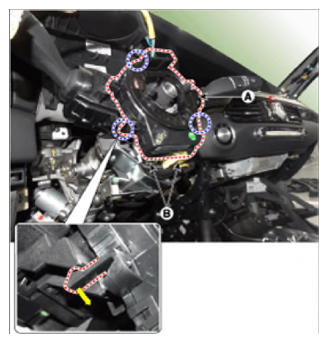

- Remove the clock spring (A) after disconnecting the clock spring connectors (B).
