Repair Procedures: Replacement

  1. Disconnect the negative (-) battery terminal.
  2. Remove the rear console assembly.

    (Refer to Body (Interior and Exterior) - "FLOOR CONSOLE ")

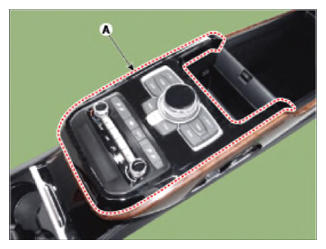

  3. Using a screwdriver or remover, remove the rear console upper cover (A).
    G13550667Courtesy of HYUNDAI MOTOR AMERICA

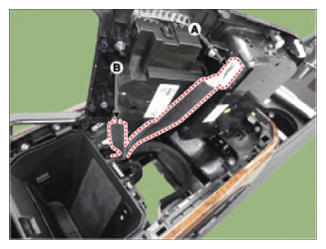

  4. Disconnect the rear console control unit connector (A) and AVN keyboard connector (B).
    G13550668Courtesy of HYUNDAI MOTOR AMERICA

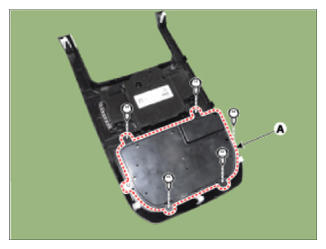

  5. Remove the rear console control unit (A) after loosening the mounting screw.
    G13550669Courtesy of HYUNDAI MOTOR AMERICA
  6. To install, reverse the removal procedure.

    Information

    • Make sure the connector is connected properly.
    • Replace any damaged clips (or pin-type retainers).
