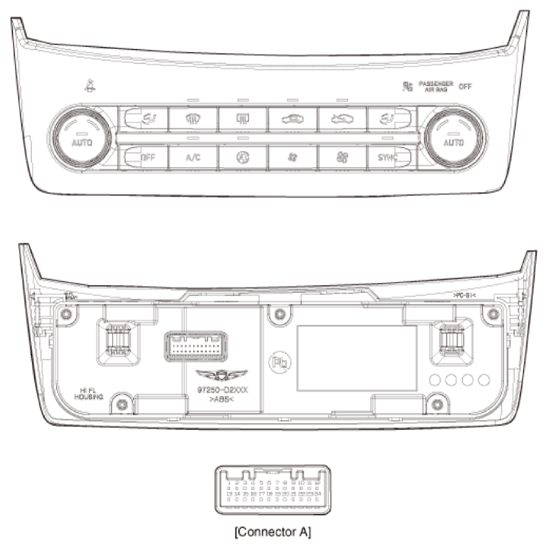

Components And Components Location: Components
| Pin NO | Function | Pin NO | Function |
|---|---|---|---|
| 1 | Battery (+) | 13 | IGN1 |
| 2 | IGN2 | 14 | ISG B+ |
| 3 | PAB IGN 1 | 15 | Taillight (+) |
| 4 | - | 16 | - |
| 5 | Rear defog switch | 17 | Climate CAN (Low) |
| 6 | HTD (Rear defog indicator) | 18 | Climate CAN (High) |
| 7 | Detent Out (-) | 19 | - |
| 8 | ILL- (RHEO) | 20 | - |
| 9 | In car motor (-) | 21 | - |
| 10 | In car sensor (+) | 22 | PAB off signal |
| 11 | Sensor ground | 23 | SBR |
| 12 | Ground | 24 | Ground |
