Repair procedures: Replacement

  1. Disconnect the negative (-) battery terminal.
  2. Remove the lower crash pad panel [RH].

    (Refer to Body (Interior and Exterior) - "LOWER CRASH PAD PANEL [RH] ")

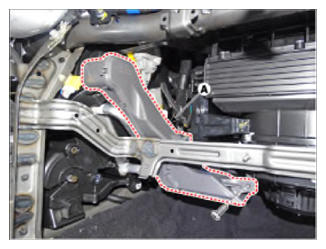

  3. Remove the passenger's side shower duct (A) after loosening the screw.
    G13550625Courtesy of HYUNDAI MOTOR AMERICA

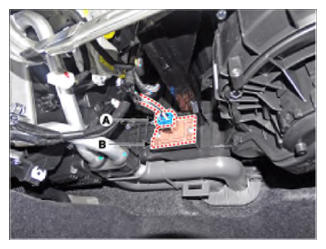

  4. Disconnect the Power MOSFET connector (A) and then remove the Power MOSFET (B) after loosening the mounting screws.
    G13550626Courtesy of HYUNDAI MOTOR AMERICA
  5. To install, reverse the removal procedure.
