Repair Procedures: Replacement

CAUTION:
  • Put on gloves to protect your hands.
NOTE:
  • When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
  • Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
  • Take care not to bend or scratch the trim and panels.
  1. Remove the rear seat cushion assembly.

    (Refer to Rear Seat - "REAR SEAT CUSHION ASSEMBLY ")

  2. Remove the rear seat back assembly.

    (Refer to Rear Seat - "REAR SEAT ASSEMBLY ")

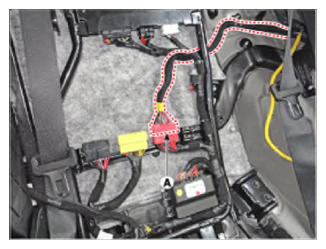

  3. Disconnect the rear seat frame connector (A).

    [LH]

    G13549619Courtesy of HYUNDAI MOTOR AMERICA

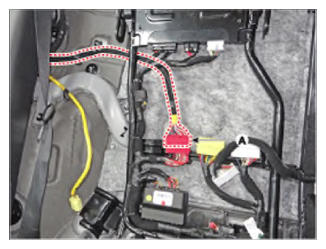

    [RH]

    G13549620Courtesy of HYUNDAI MOTOR AMERICA

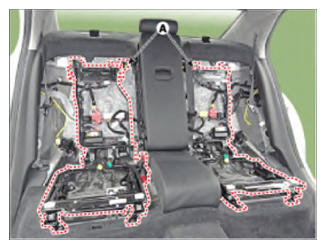

  4. After loosening the mounting bolts and nuts, remove the rear seat frame assembly (A).

    Tightening torque:

    Bolt: 21.6 - 31.4 N.m (2.2 - 3.2 kgf.m, 15.9-23.1 lb-ft)

    Nut: 9.6 - 14.7 N.m (1.0 - 1.5 kgf.m, 7.2 - 10.8 lb-ft)

    G13549621Courtesy of HYUNDAI MOTOR AMERICA
  5. To install, reverse the removal procedure.

    Information

    • Replace any damaged clips (or pin-type retainers).
    • Make sure the connector is plugged in properly.
