Monitoring DTC Status
- Connect GDS to "DATA LINK CONNECTOR (DLC)".
- IG key "ON", Engine "OFF".
- Select "Diagnostic Trouble Codes (DTC)" with GDS.

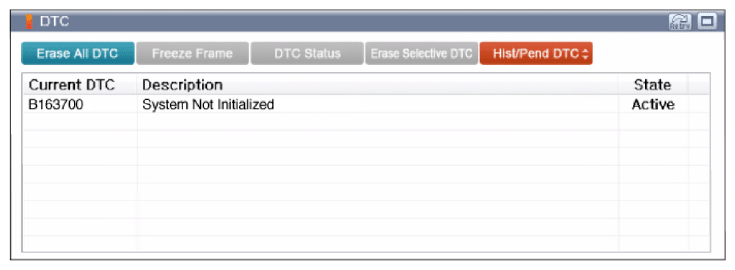

- Monitor the diagnostic trouble code and present of the trouble code.
- Erase the DTC and operate the vehicle within DTC Enable conditions in General information.
- Is the DTC output again?
YES
- Perform
"Seat Limit Position Setting" procedure in the "Vehicle S/W Management" with GDS.
→ Go to "VERIFICATION OF VEHICLE REPAIR " procedure.
NO
- The fault may be the case which RLPSM*'s memory was not cleared after repair.
→ Go to "VERIFICATION OF VEHICLE REPAIR " procedure.
NOTE: RLPSM*: "REAR IMS CONTROL MODULE LH" - Perform
"Seat Limit Position Setting" procedure in the "Vehicle S/W Management" with GDS.
