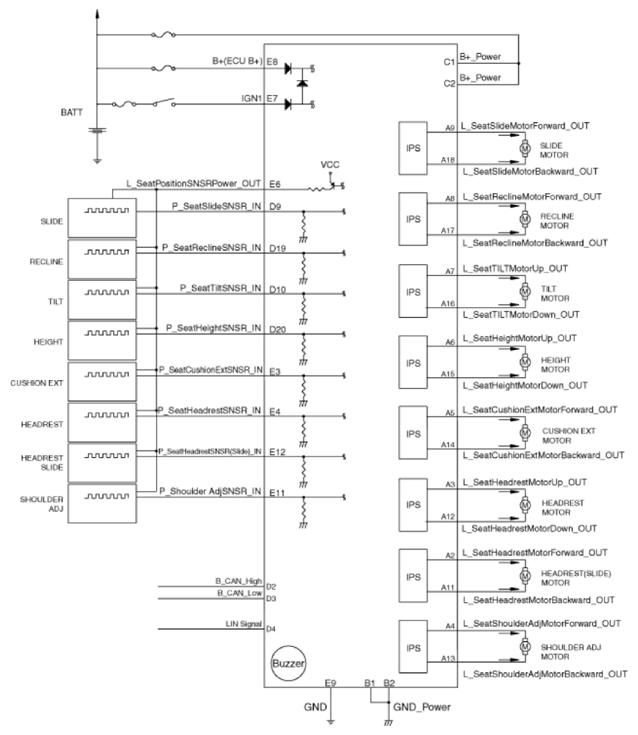

Home >> Genesis >> 2020 >> G90 5.0 Ultimate, AWD >> Repair and Diagnosis >> Body & Frame >> Seats >> Integrated Memory System (IMS) >> Memory Power Seat Unit >> Schematic Diagrams >> Circuit Diagram >> Driver memory Power Seat Module (DPSM)
