Repair Procedures: Replacement

CAUTION:
  • Put on gloves to prevent hand injuries.
NOTE:
  • When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
  • When removing the interior trim pieces, use a plastic panel removal tool not to damage the surface.
  • Take care not to bend or scratch the trim and panels.
  1. Remove the front seat assembly.

    (Refer to Front Seat - "FRONT SEAT ASSEMBLY ")

  2. Remove the front seat shield outer cover.

    (Refer to Front Seat - "FRONT SEAT SHIELD OUTER COVER ")

  3. Remove the front seat shield inner cover.

    (Refer to Front Seat - "FRONT SEAT SHIELD INNER COVER ")

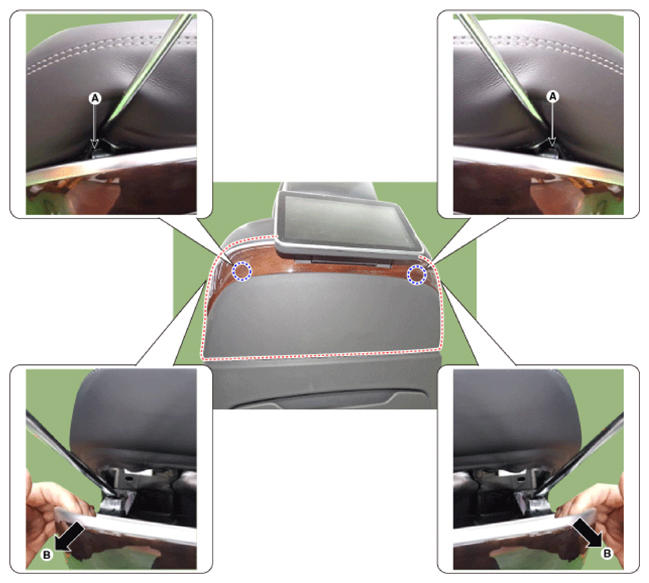

  4. Using a screwdriver or remover, remove the front seat back cover.
    1. Using a screwdriver to press the fixing pin.
    2. Pull out the sheet by hand.
      G13549557Courtesy of HYUNDAI MOTOR AMERICA
  5. Disconnect the rear monitor connector (A) and rear monitor cable (B).
    G13549558Courtesy of HYUNDAI MOTOR AMERICA
  6. After loosening the mounting bolts, remove the rear monitor assembly (A).
    G13549559Courtesy of HYUNDAI MOTOR AMERICA
  7. Remove the headrest (A).
    G13549560Courtesy of HYUNDAI MOTOR AMERICA

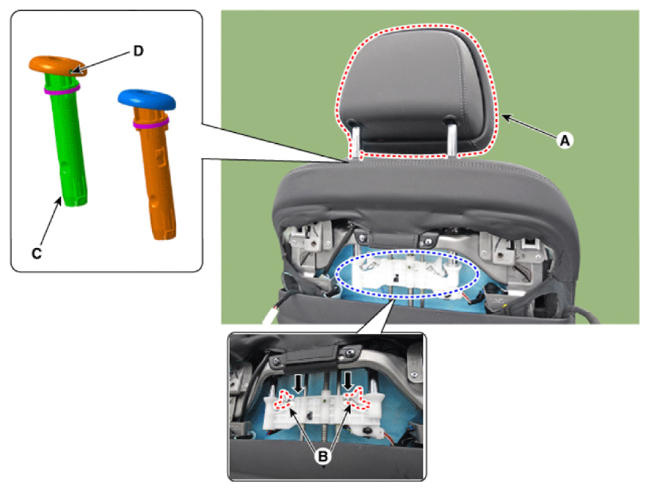

    *How to remove the headrest

    1. Push the mounting clip (A) of the headrest in the direction of the arrow.
    2. Release the 'LOCK' state by inserting the sharp-pointed tool into the hole (C) located at the upper side of the headrest guide (B) and then remove the headrest (D) in the direction of the arrow.
      G13549561Courtesy of HYUNDAI MOTOR AMERICA

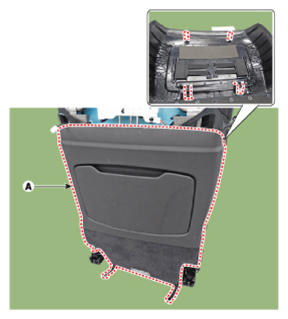

  8. Remove the front seat lower back board (A).
    NOTE:
    • Grasp the both lower sides of back board with hands and then remove it in the direction of the arrow.
    • Be careful not to damage the fixing clips.
    G13549562Courtesy of HYUNDAI MOTOR AMERICA
  9. Disconnect the front seat back board connector (A).
    G13549563Courtesy of HYUNDAI MOTOR AMERICA
  10. Remove the front seat air ventilation seat back duct (A).
    G13549564Courtesy of HYUNDAI MOTOR AMERICA
  11. Disconnect the connector (A).
    G13549565Courtesy of HYUNDAI MOTOR AMERICA
  12. Using a screwdriver or remover, remove the front seat headrest guides (A) by pulling them upwards.
    G13549566Courtesy of HYUNDAI MOTOR AMERICA
    G13549567Courtesy of HYUNDAI MOTOR AMERICA
  13. Remove the protector (A) from the front seat back frame.
    G13549568Courtesy of HYUNDAI MOTOR AMERICA
  14. Remove the front seat back cover assembly (A) from the front seat back frame.
    G13549569Courtesy of HYUNDAI MOTOR AMERICA
  15. After removing the Velcro tape (A) and hog-ring clips (B) on the front of seat back and remove the front seat back cover (C).
    CAUTION:
    • Make sure that the sponge insert wire is not dislocated.
    G13549570Courtesy of HYUNDAI MOTOR AMERICA
  16. Remove the front seat back cover (A) from the front seat back pad.
    G13549571Courtesy of HYUNDAI MOTOR AMERICA
  17. To install, reverse the removal procedure.

    Information

    • Make sure that the connectors are connected completely
    • Replace any damaged clips.
    • To prevent wrinkles, make sure that the cover (B) is stretched evenly before connecting the hog-ring clips (A).
    • Replace the hog-ring clips with new ones using special tool (C) (09880-4F000).
      G13549572Courtesy of HYUNDAI MOTOR AMERICA
