Repair Procedures: Replacement

NOTE:

When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
When removing the interior trim pieces, use a plastic panel removal tool not to damage the surface.
Take care not to bend or scratch the trim and panels.

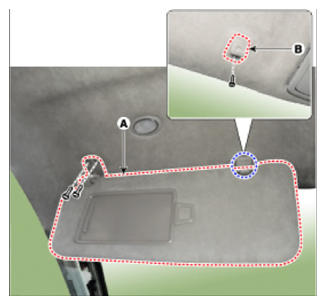

Loosen the mounting screws, and then remove the sunvisor (A) and retainer (B).

Courtesy of HYUNDAI MOTOR AMERICA

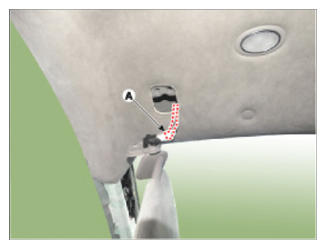

Disconnect the sunvisor lamp connector (A).

Courtesy of HYUNDAI MOTOR AMERICA
To install, reverse the removal procedure.
Information
- Make sure the connector is connected properly.
