Repair Procedures: Installation
CAUTION:

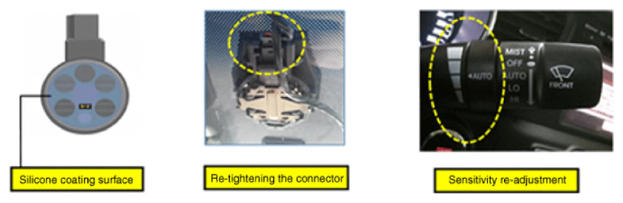

- Check the operation of the rain sensor and the light sensor before mounting.
- Check the sensor for silicon damage.
- Check whether the rain sensor connector is tightened.
- Check whether the rain sensor and bracket are properly tightened.
- Check whether the sensor mounted area is free from foreign matters.
- Recalibrate sensitivity of the switch if the auto-wiping operation is insensitivity or too much sensitive.
- In case the silicone of the rain sensor is normal or slightly damaged as shown in the below illustrations, it can be reused.
| Normal | Damage within 1.5 mm of outer part |
|---|---|
- In case the silicone of the rain sensor is damaged as shown in the below illustration, it should be replaced with a new silicone.
| Foreign substances | Fingerprint | Damage |
|---|---|---|
| Damage | ||

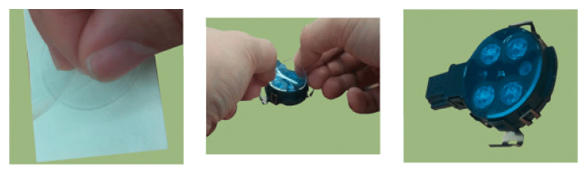

- In case the silicone of the rain sensor is damaged it should be replaced it as shown below.
NOTE:
- When attaching the silicone gel pad to the sensor, be careful not to contaminate

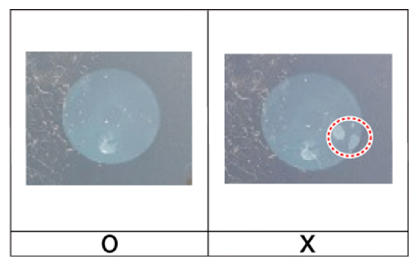

- It is very important that the silicon (coupling pad) is completely pushed against the windshield and stuck without any air bubble.
- In case of replacing the damaged windshield, you may reuse the undamaged existing rain sensor.
- The windshield glass has to be clean and free of contamination or foreign substances.
- Connect the rain sensor connector.

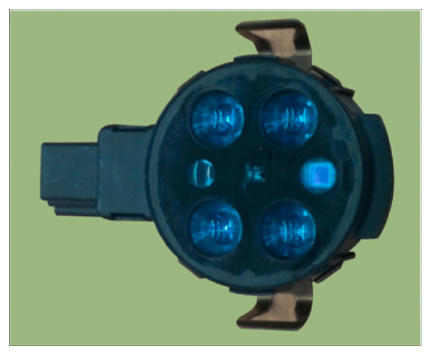

- Push one of the latch of spring arm (A) down until it snaps and you hear a click sound.
And then push the latch of second spring arm (B) for keeping the sensor in right position.
CAUTION:
- Do not snap both spring arms at the same time.
- An incorrectly mounted snap connection may cause malfunctions of the rain/light sensor.
