Repair Procedures: Inspection

Diagnosis with GDS

1. The body electrical system can be quickly diagnosed failed parts with vehicle diagnostic system (GDS).

   The diagnostic system (GDS) provides the following information.

   1. Self diagnosis: Checking the failure code (DTC) and display.
   2. Current data: Checking the system input/output data state.
   3. Actuator test: Checking the system operation condition.
   4. Additional function: Other controlling such as the system option and zero point adjustment.
2. Select the "Car Model" and the system to be checked in order to check the vehicle with the tester.
3. Select the "Power seat module" to check the power seat module.

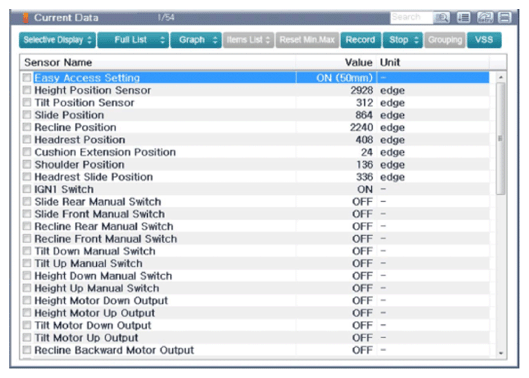

4. Select the "Current Data" menu to search the current state of the input/output data.

   The input/output data for the sensors corresponding to the power seat module can be checked.
