AFS Setting Procedure

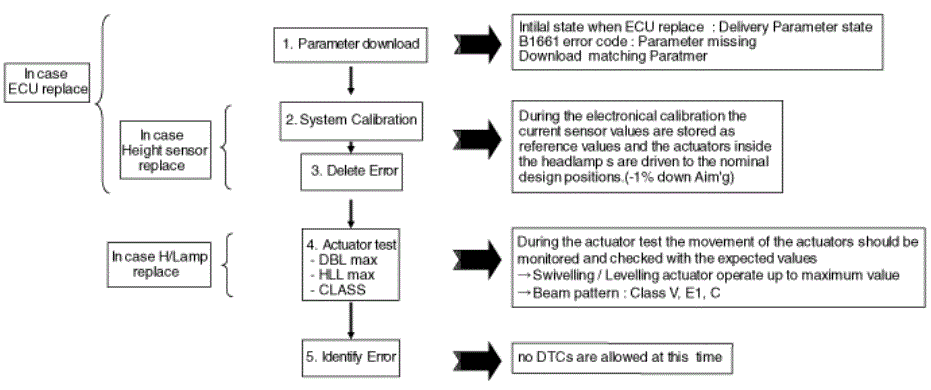

When it replace AFS ECU or H/Lamp Unit or Height sensor, it operates in setting procedure by using Diagnostic equipment following bellows.

When AFS setting procedure operate, necessarily confirm suspension type and then download parameter.

Courtesy of HYUNDAI MOTOR AMERICA

* DTC: Diagnostic Trouble Code

DBL: Dynamic bending Light

HLL: Head Lamp Levelling
