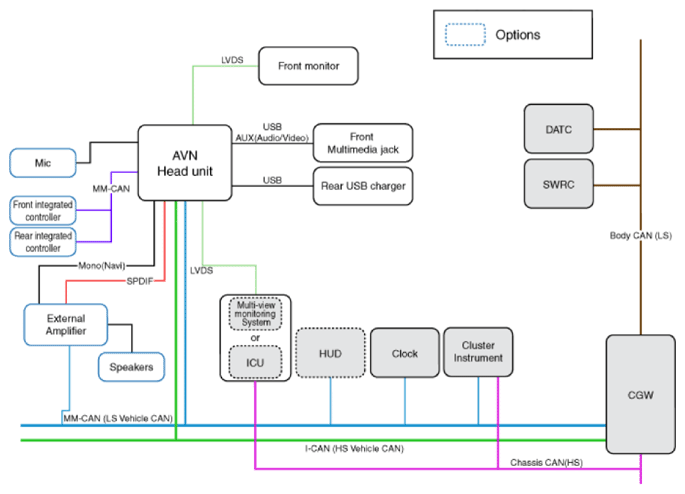

Home >> Genesis >> 2020 >> G90 5.0 Ultimate, AWD >> Repair and Diagnosis >> Accessories & Equipment >> Entertainment Systems >> Audio/Video/Navigation (AVN) System >> Description And Operation >> Description >> System Block Diagram
