Component Location

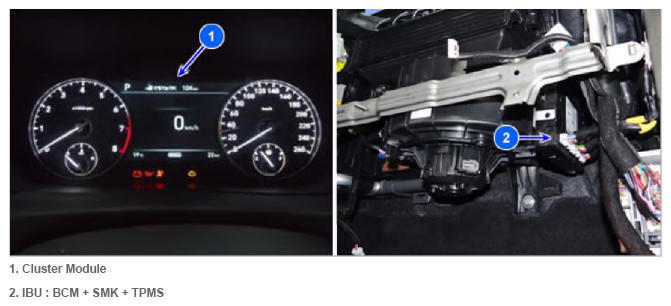

G13552807Courtesy of HYUNDAI MOTOR AMERICA
NOTE: Cluster:  "INSTRUMENT CLUSTER"
IBU  (Integrated Body control Unit): "IBU CONTROL MODULE"
BCM:  Body Control Module
SMK:  Smart Key control Module
TPMS:  Tire Pressure Monitoring System module
