Description And Operation: Description
Automatic transmission system relies on various measurement data to determine the current control status and extrapolate the necessary compensation values.
These values are used to control the actuators and achieve the desired control output.
If a problem with the drivetrain, including the transmission, has been identified, perform self-diagnosis and basic transmission inspection (oil and fluid inspection) and then check the control system's components using the diagnosis tool.

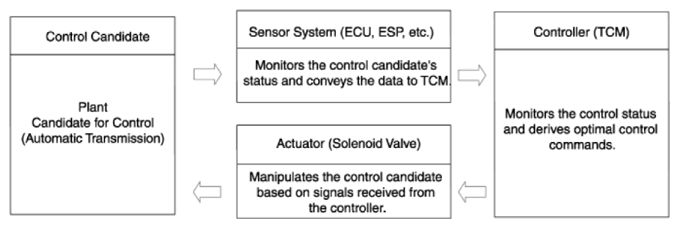

Control System Composition

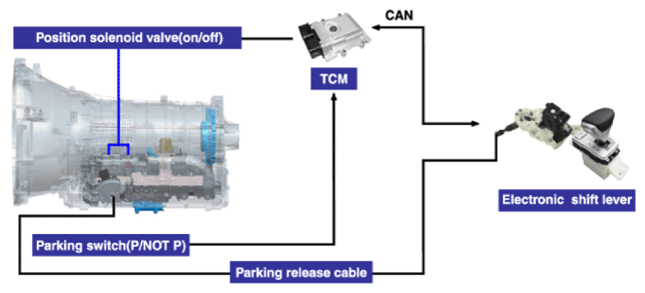

Shift By Wire (SBW) System Composition
- Operating Principle
- Instead of cable, the system uses electronic signals to shift between the P-R-N-D gears.
- Structurally designed to ensure that the vehicle is in park at all times when the power is off.
