Variable Force Solenoid (Intake)

[Bank 1]

  1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.
  2. Disconnect the variable force solenoid connector (A).
  3. Remove the installation bolt (B), and then remove the variable force solenoid (VFS) from the engine.

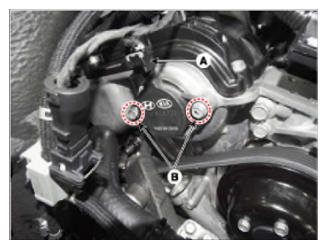

G13547612Courtesy of HYUNDAI MOTOR AMERICA

[Bank 2]

  1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.
  2. Disconnect the variable force solenoid connector (A).
  3. Remove the installation bolt (B), and then remove the variable force solenoid (VFS) from the engine.

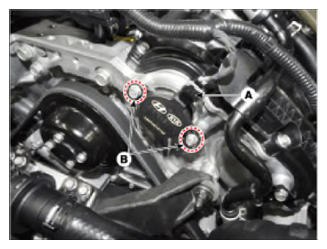

G13547613Courtesy of HYUNDAI MOTOR AMERICA
