Monitoring DTC Status
- Vehicle Parked & Engine ON.
- Connect GDS and select "DTC Analysis" mode.

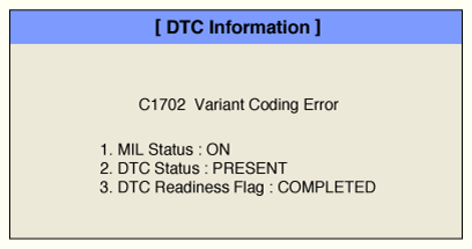

- Click "DTC Status" on the "Diagnostic Trouble Codes (DTC)" menu bar to see DTC INFORMATION .
- Confirm that "DTC Readiness Flag" indicates "COMPLETED". If not, drive the vehicle within conditions noted in the freeze frame data or enable conditions.
- Read "DTC Status" parameter.
- Is parameter displayed "Present Fault"?
YES

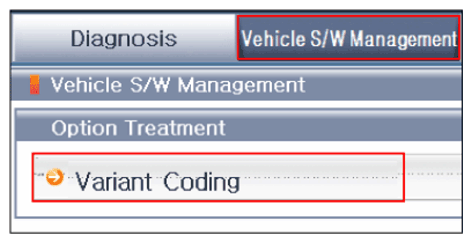

- Perform the "Variant Coding" and "ECS Alignment" at the "Vehicle S/W Management" mode by using GDS.
- Repair or replace as necessary and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
NO
- This fault was repaired and ECS Module memory was not cleared. Go to "VERIFICATION OF VEHICLE REPAIR " procedure.
