Repair Procedures: Replacement

  1. Disconnect the negative (-) battery terminal.
  2. Remove the main crash pad.

    (Refer to Body - "MAIN CRASH PAD ")

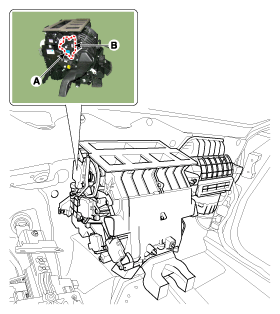

  3. Disconnect the connector (A) and then remove the mode control actuator (B) after loosening the mounting screws.
    G12662490Courtesy of HYUNDAI MOTOR AMERICA
  4. Install in the reverse order of removal.
