Home >> Genesis >> 2020 >> G80 5.0 Ultimate, AWD >> Repair and Diagnosis >> Heating, Ventilation & A/C (HVAC) >> HVAC Control Systems >> Heater System >> Heater Unit >> Components And Components Location >> Components (1)

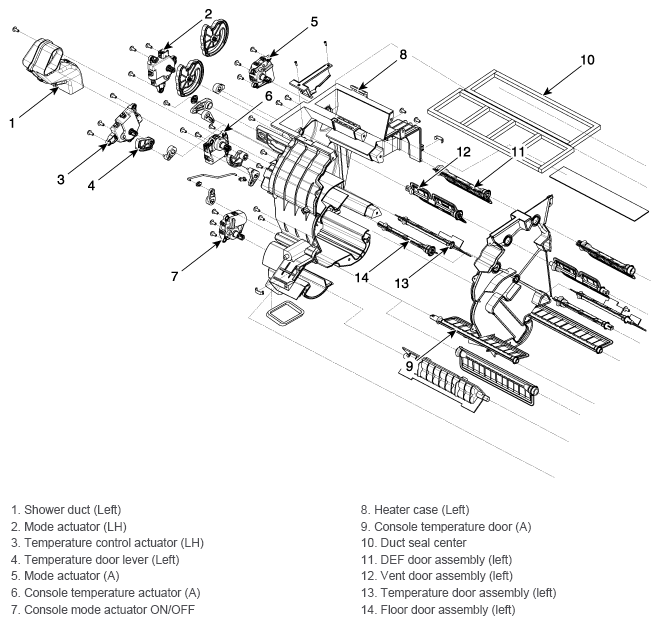

Components (1)

G12662462Courtesy of HYUNDAI MOTOR AMERICA
