Repair Procedures: Replacement

  1. Disconnect the negative (-) battery terminal.
  2. Remove the crash pad main lower assembly.

    (Refer to Body - "CRASH PAD MAIN LOWER ASSEMBLY ")

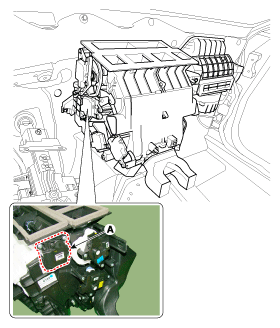

  3. Disconnect the connector and then remove the auto defogging actuator (A) after loosening the mounting screw
    G12662498Courtesy of HYUNDAI MOTOR AMERICA
  4. Install in the reverse order of removal.
