Repair Procedures: Replacement

  1. Disconnect the negative (-) battery terminal.
  2. Remove the cowl side trim.

    (Refer to Body - "COWL SIDE TRIM ")

  3. To remove the crash pad under cover [RH] (A), press both sides of the push pin and then pull it down.
    G12662527Courtesy of HYUNDAI MOTOR AMERICA
  4. Disconnect the under lamp connector (A).
    G12662528Courtesy of HYUNDAI MOTOR AMERICA

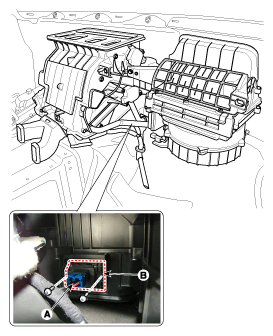

  5. Disconnect the power mosfet connector (A) and then remove the power mosfet (B) after loosening the mounting screws.
    G12662529Courtesy of HYUNDAI MOTOR AMERICA
  6. Install in the reverse order of removal.
