Repair Procedures: Replacement

  1. Disconnect the negative (-) battery terminal.
  2. Remove the glove box upper cover.

    (Refer to Body - "CRASH PAD MAIN LOWER ASSEMBLY ")

  3. Remove the passenger"s side shower duct (A).
    G12662535Courtesy of HYUNDAI MOTOR AMERICA

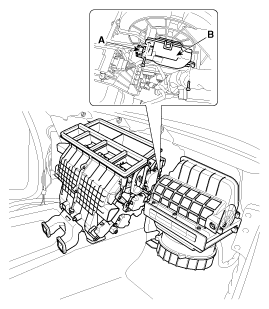

  4. Disconnect the connector (A), and then remove the intake actuator (B) after loosening the mounting screws.
    G12662536Courtesy of HYUNDAI MOTOR AMERICA
  5. Install in the reverse order of removal.
