Trunk Lock Module Inspection

Remove the Trunk trim.
(Body - "Trunk Lid Trim")

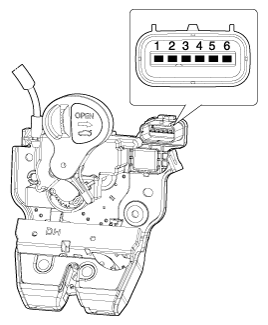

Disconnect the 6P connector from the actuator

Courtesy of HYUNDAI MOTOR AMERICA

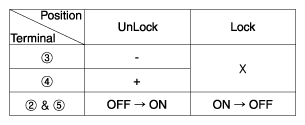

"Check actuator operation by connecting power and ground as displayed below. To prevent damage to the actuator, apply battery voltage only momentarily."

Courtesy of HYUNDAI MOTOR AMERICA

Courtesy of HYUNDAI MOTOR AMERICA
Refer to the POWER TRUNK MODULE for checking the vehicle with Power Trunk option.
