Actual Measurement Dimensions: Notes

G12656846

Courtesy of HYUNDAI MOTOR AMERICA

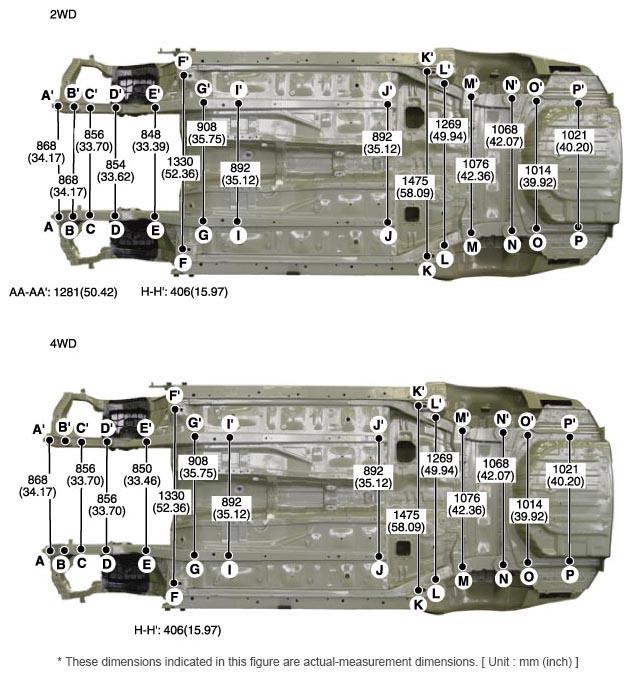

* These dimensions indicated in this image are actual-measurement dimensions. [Unit: mm (inch)]
