Interior E

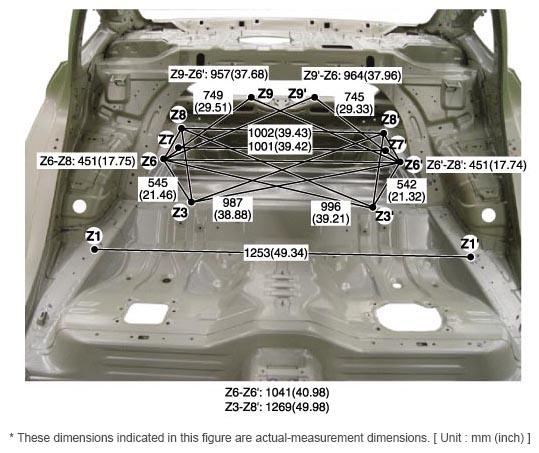

G12656838Courtesy of HYUNDAI MOTOR AMERICA

* These dimensions indicated in this image are actual-measurement dimensions. [Unit: mm (inch)]

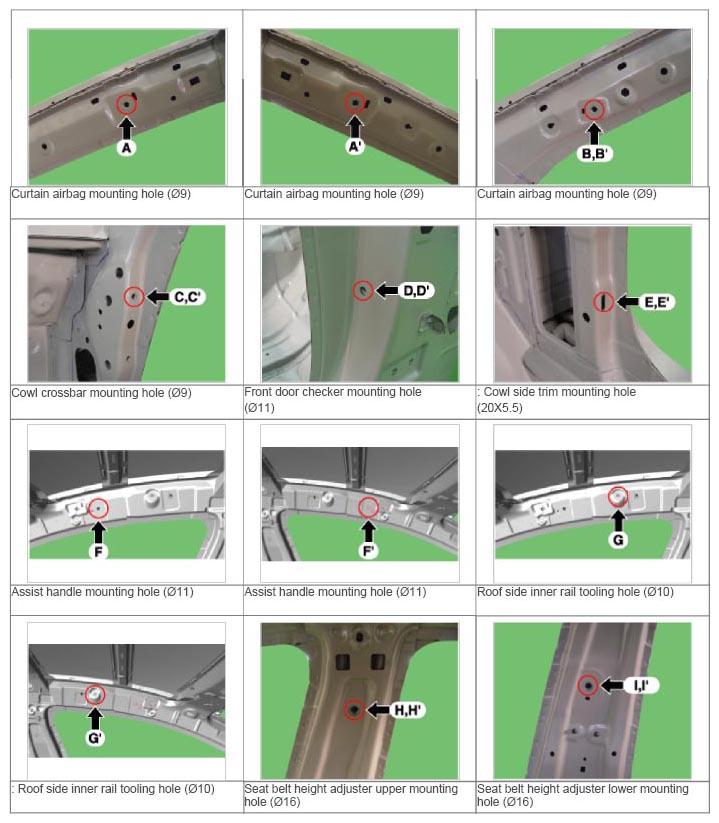

G12656839Courtesy of HYUNDAI MOTOR AMERICA

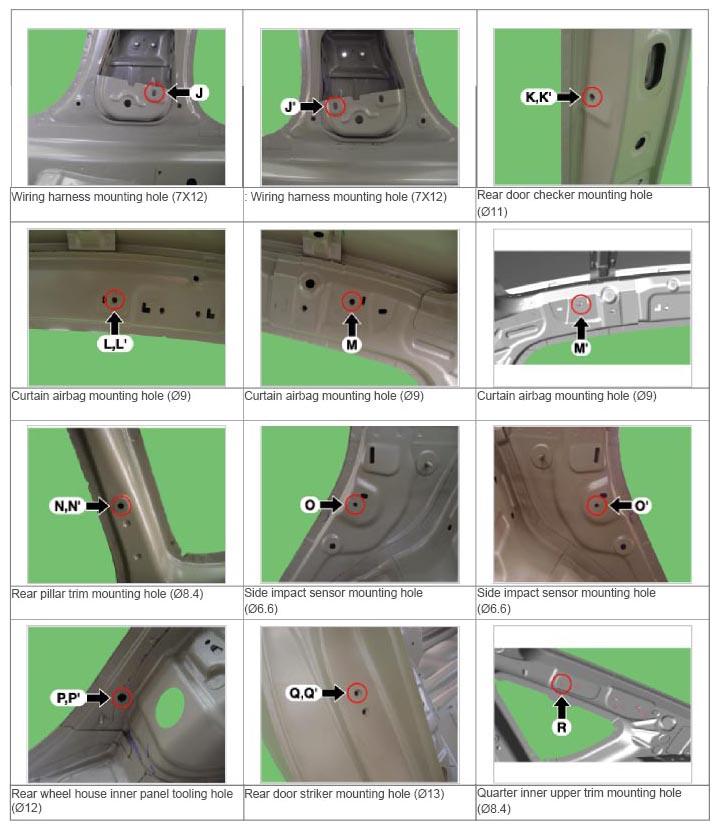

G12656840Courtesy of HYUNDAI MOTOR AMERICA

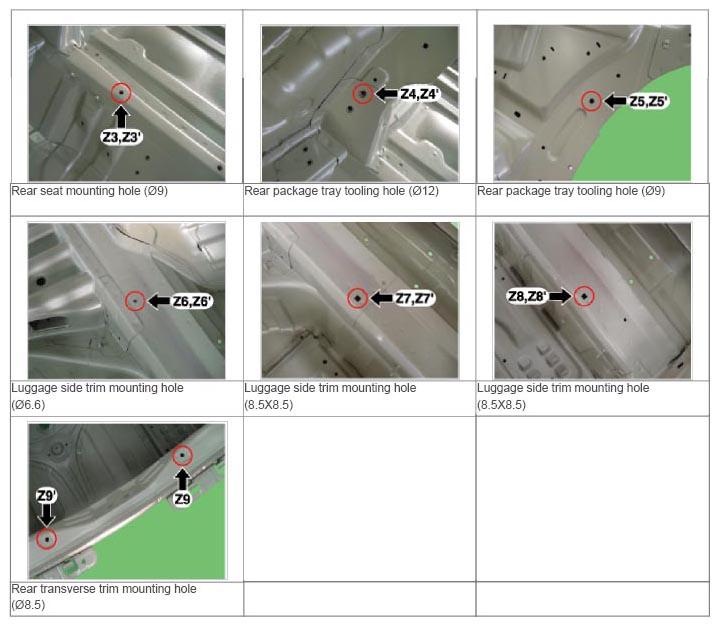

G12656841Courtesy of HYUNDAI MOTOR AMERICA
