Body Dimensions
>>
Interior
>>
Body Repair
>>
Interior D
Interior D
Courtesy of HYUNDAI MOTOR AMERICA

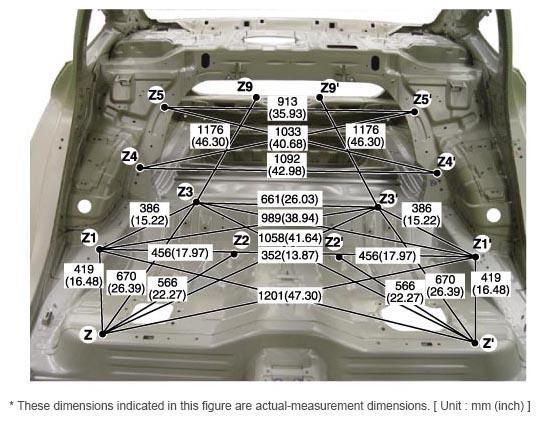

* These dimensions indicated in this image are actual-measurement dimensions. [Unit: mm (inch)]
Courtesy of HYUNDAI MOTOR AMERICA
