Front Body D

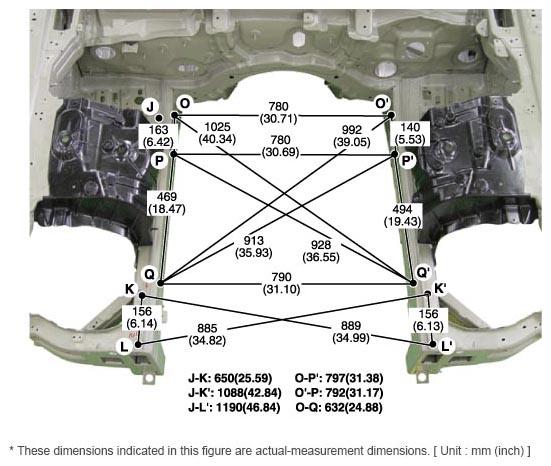

G12656827Courtesy of HYUNDAI MOTOR AMERICA

* These dimensions indicated in this image are actual-measurement dimensions. [Unit: mm (inch)]

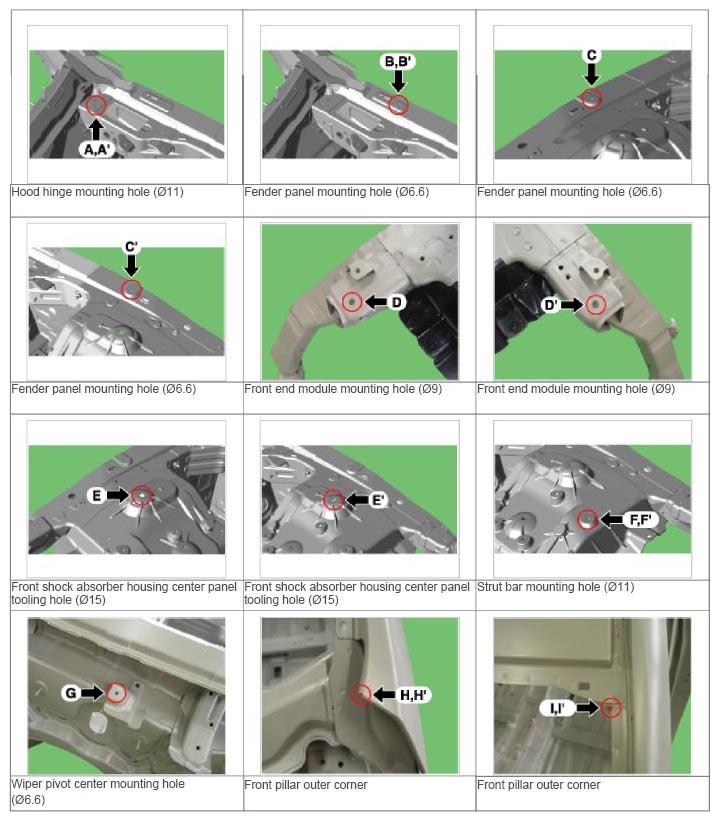

G12656828Courtesy of HYUNDAI MOTOR AMERICA

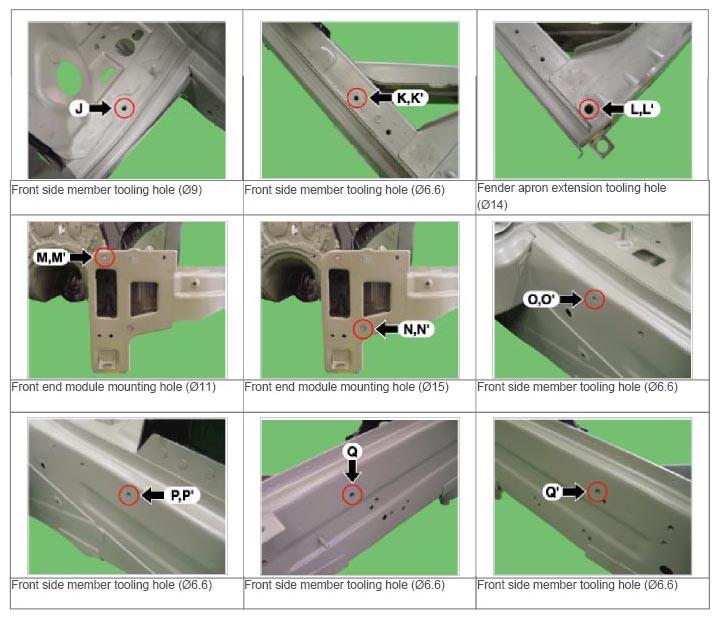

G12656829Courtesy of HYUNDAI MOTOR AMERICA
