Front Cross Member

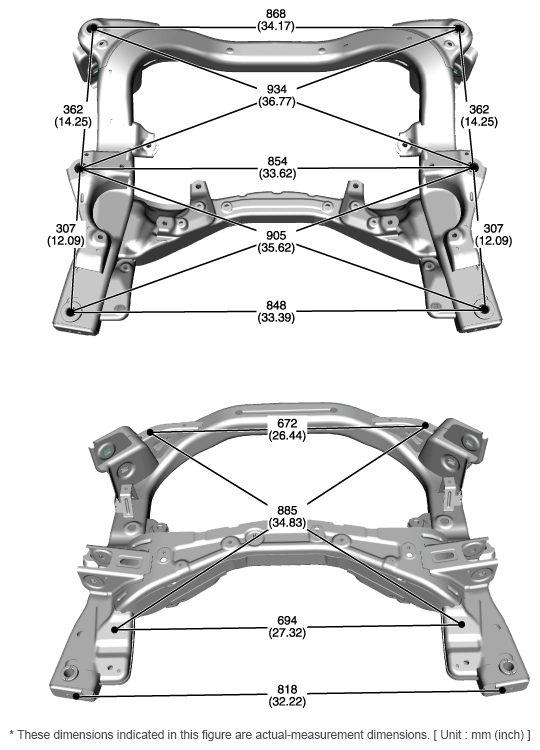

G12656856Courtesy of HYUNDAI MOTOR AMERICA

* These dimensions indicated in this image are actual-measurement dimensions. [Unit: mm (inch)]

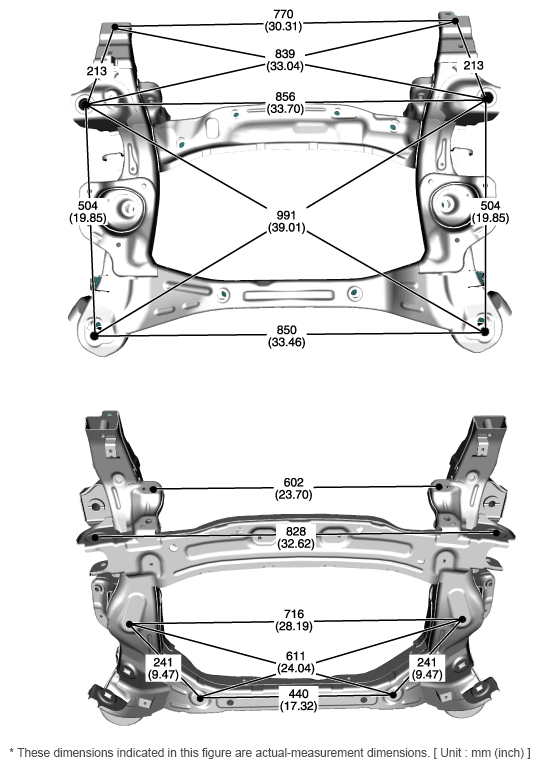

G12656857Courtesy of HYUNDAI MOTOR AMERICA

* These dimensions indicated in this image are actual-measurement dimensions. [Unit: mm (inch)]
