Home >> Genesis >> 2020 >> G80 3.8, AWD >> Repair and Diagnosis >> Accessories & Equipment >> Memory Modules >> Integrated Memory System (IMS) >> Memory Power Seat Unit >> Repair Procedures >> Removal

Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the front seat.

    (Refer to Body - "FRONT SEAT ASSEMBLY ")

  3. Driver settings menu (USM) is Off,

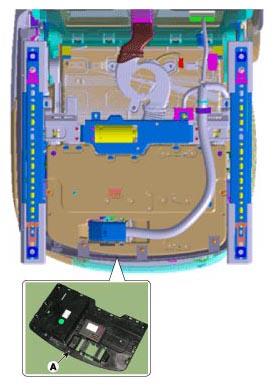

    G12658633Courtesy of HYUNDAI MOTOR AMERICA
  4. Loosen the mounting screws (2) and remove the IMS unit (A).
    G12658634Courtesy of HYUNDAI MOTOR AMERICA
