Repair Procedures: Removal

  1. Disconnect the battery negative cable and wait for at least three minutes before beginning work.
  2. Put a flat tool (04 mm) into a guide hole located in the bottom of steering wheel and press a spring.

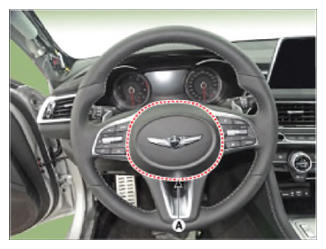

    G13540745Courtesy of HYUNDAI MOTOR AMERICA
    G13540746Courtesy of HYUNDAI MOTOR AMERICA
    CAUTION: When put a tool into a hole, make sure not to damage an airbag cousin by a tool.
  3. Turn a steering wheel anti-clockwise, so make a guide hole (A) shown on the right side.

    Put a tool into a hole (B) and bend back a fixed DAB spring.

    Make sure to pull DAB cover when bend back the spring.

    G13540747Courtesy of HYUNDAI MOTOR AMERICA

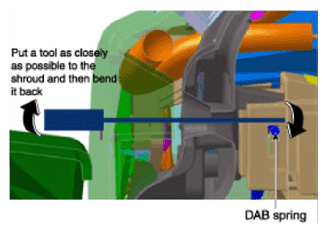

    G13540748Courtesy of HYUNDAI MOTOR AMERICA
    NOTE: Pull the DAB cover when disengaging the DAB spring because the DAB does not pop up automatically.
  4. Release the connector locking, then disconnect the driver airbag module connector (A) and horn connector (B).

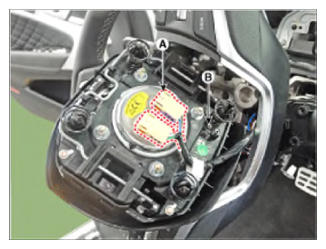

    G13540749Courtesy of HYUNDAI MOTOR AMERICA
  5. Remove the steering wheel.

    (Refer to Steering System - "STEERING COLUMN AND SHAFT ")

  6. Loosen the steering wheel column shroud panel.

    (Refer to Steering System - "STEERING COLUMN & SHAFT ")

  7. Disconnect the clock spring and horn connector, then remove the clock spring (A).

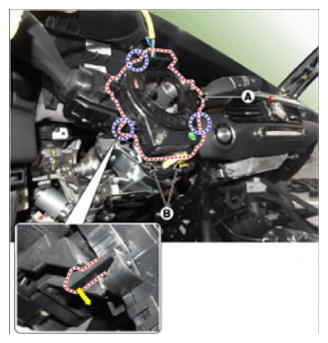

    G13540750Courtesy of HYUNDAI MOTOR AMERICA

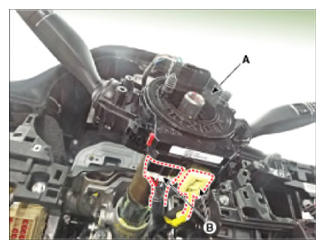

    G13540751Courtesy of HYUNDAI MOTOR AMERICA
