Repair Procedures: Installation
- Fix the brake pedal arm and insert fully the brake switch so that the contact part is invisible.
- After inserting, turn the brake switch 45° counterclockwise, and then assemble locking plate by pushing.
- Confirm the gap between stop lamp switch and bracket.
Stop lamp clearance (A):
1.0 - 2.0 mm (0.04 - 0.08 in.)
NOTE:- If the gap between stop lamp switch and bracket is not between 1.0 - 2.0 mm (0.04 - 0.08 in), check the mounting clip and other parts around the stop lamp.
- If everything is normal, reinstall the stop lamp switch and check the clearance again.

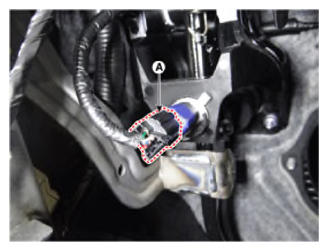

- Install the stop lamp switch connector (A).
