Repair Procedures: Inspection
- Raise the vehicle, and make sure it is securely supported.

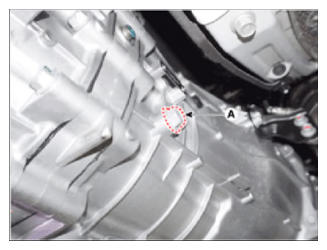

- Loosen the filler plug (A).
- Check the oil level with finger.
Oil level must be up to fill the hole, if not, add oil until it runs over.
- Install filler plug with a new gasket.
Tightening torque :
58.9 - 78.5 N.m (6.0 - 8.0 kgf.m, 43.4 - 57.8 lb-ft)
