Circuit Diagram

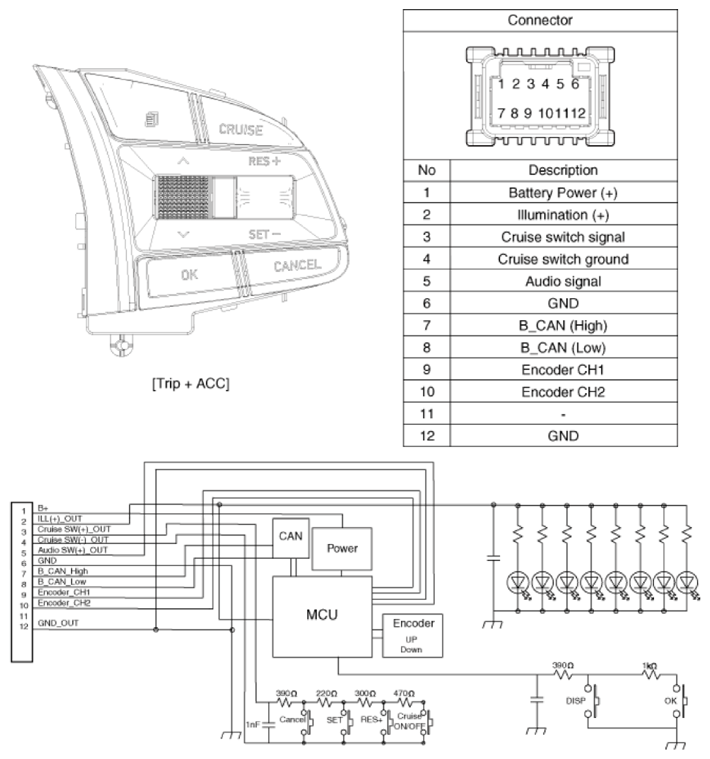

[Trip + ACC]

G13539194Courtesy of HYUNDAI MOTOR AMERICA

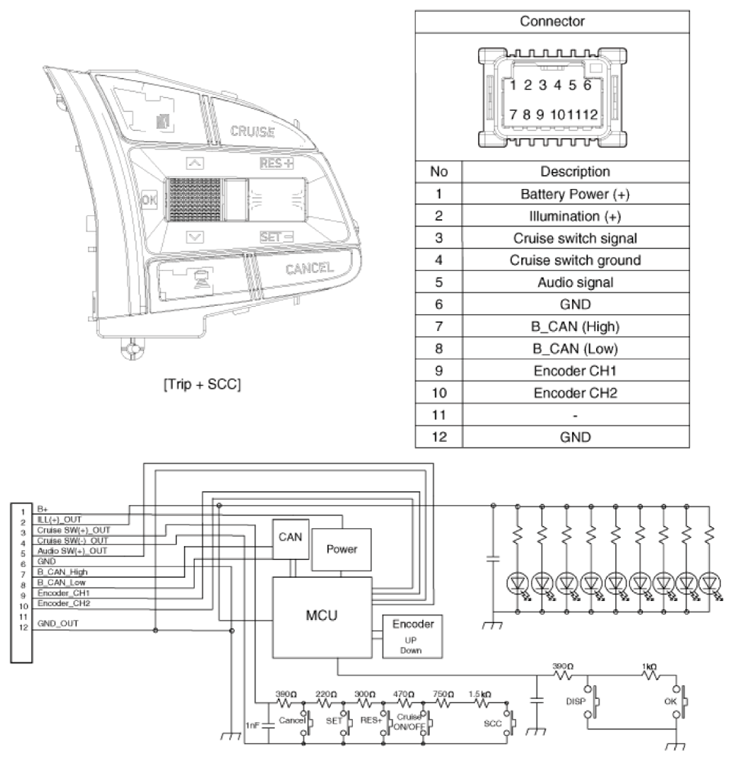

[Trip + SCC]

G13539195Courtesy of HYUNDAI MOTOR AMERICA

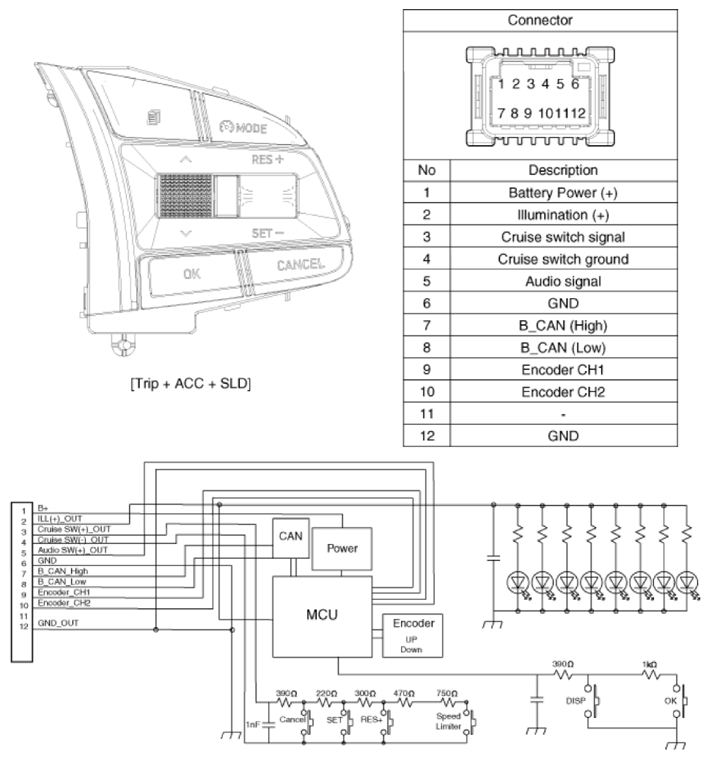

[Trip + ACC + SLD]

G13539196Courtesy of HYUNDAI MOTOR AMERICA

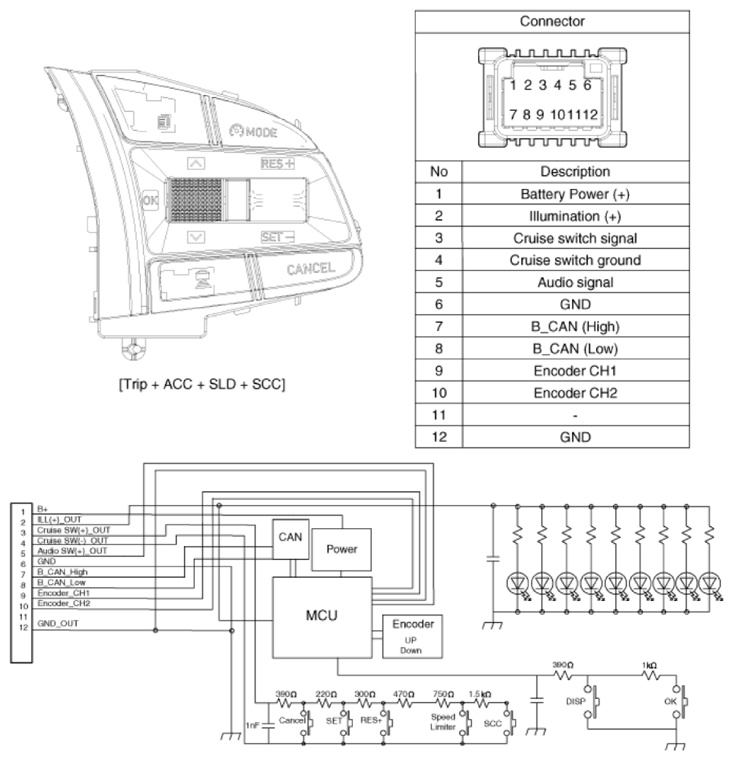

[Trip + ACC + SLD + SCC]

G13539197Courtesy of HYUNDAI MOTOR AMERICA
